S15GLW, S15DLW Standard Rectifiers

S15GLW Description

S15DLW * S15MLW Taiwan Semiconductor 1.5A, 200V - 1000V Standard Surface Mount Rectifier .
only.

S15GLW Features

* Ideal for automated placement
* Compact package size
* High surge current capability
* Low power loss, high efficiency
* Moisture sensitivity level: level 1, per J-STD-020
* RoHS Compliant

S15GLW Applications

* DC to DC converter
* Switching mode converters and inverters
* General purpose KEY PARAMETERS PARAMETER VALUE UNIT IF 1.5 A VRRM 200 - 1000 V IFSM 50 A TJ MAX 175 °C Package SOD-123W Configuration Single die MECHANICAL DATA
* Case: SOD-123W
* Molding compound

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S15GLW, S15DLW. Please refer to the document for exact specifications by model.

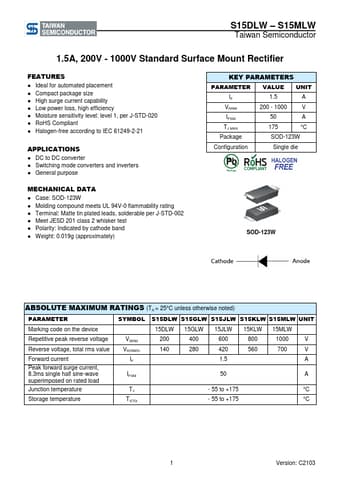

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S15GLW, S15DLW
Manufacturer
Taiwan Semiconductor
File Size
423.68 KB
Datasheet
S15DLW-TaiwanSemiconductor.pdf
Description
Standard Rectifiers
Note
This datasheet PDF includes multiple part numbers: S15GLW, S15DLW.
Please refer to the document for exact specifications by model.
