S15GBJ20-C - Bridge Rectifiers

Features

  • Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique Plastic material has Underwriters Laboratory flammability classification 94V-0 Mounting position: Any These are Halogen & Pb Free components This series is UL recognized under Component Index, file number E255340 GBJ REF. A B C D E F G H Millimeter Min. Max. 29.7 30.3 19.7 20.3 2.3 2.7 17 18 2.0 2.4 0.9 1.1 3.4 3.8 9.8 10.2 REF. I J K L M N P Millimeter Min. Max. 7.3 7.7 2.5 2.9 0.6 0.8 10.8 11.

📥 Download Datasheet

Datasheet Details

Part number S15GBJ20-C
Manufacturer SeCoS
File Size 213.29 KB
Description Bridge Rectifiers
Datasheet download datasheet S15GBJ20-C Datasheet

📁 Similar Datasheet

  • S15GC - 400V - 1000V Surface Mount Rectifier (Taiwan Semiconductor)
  • S15GLW - Standard Rectifiers (Taiwan Semiconductor)
  • S15GW - Surface Mount General Purpose Silicon Rectifiers (SEMIPOWER)
  • S15 - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (YS)
  • S15-40i - Thyratron (AEG)
  • S15-5d - Thyratron (AEG)
  • S15-80i - Thyratron (AEG)
  • S150J - Silicon Standard Recovery Diode (GeneSiC)
  • S150JR - Silicon Standard Recovery Diode (GeneSiC)
  • S150K - Silicon Standard Recovery Diode (GeneSiC)
Other Datasheets by SeCoS

Full PDF Text Transcription

Click to expand full text

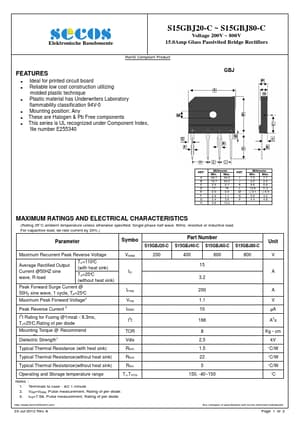

Elektronische Bauelemente S15GBJ20-C ~ S15GBJ80-C Voltage 200V ~ 800V 15.0Amp Glass Passivited Bridge Rectifiers RoHS Compliant Product FEATURES Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique Plastic material has Underwriters Laboratory flammability classification 94V-0 Mounting position: Any These are Halogen & Pb Free components This series is UL recognized under Component Index, file number E255340 GBJ REF. A B C D E F G H Millimeter Min. Max. 29.7 30.3 19.7 20.3 2.3 2.7 17 18 2.0 2.4 0.9 1.1 3.4 3.8 9.8 10.2 REF. I J K L M N P Millimeter Min. Max. 7.3 7.7 2.5 2.9 0.6 0.8 10.8 11.2 φ3.1 φ3.4 3.8 4.2 4.4 4.8 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (Rating 25°C ambient temperature unless otherwise specified.
