MUR420S - Surface Mount Ultrafast Power Rectifiers

Taiwan Semiconductor

📥 Download Datasheet

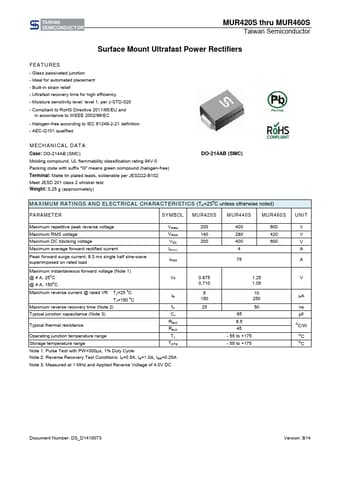

MUR420S Datasheet Preview — Preview of MUR420S PDF

Datasheet Details

Part number	MUR420S
Manufacturer	Taiwan Semiconductor
File Size	355.78 KB
Description	Surface Mount Ultrafast Power Rectifiers
Datasheet	MUR420S-TaiwanSemiconductor.pdf

MUR420S Product details

Description

AEC-Q101 qualified AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25oC unless otherwise noted) FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 4 FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 100 75 PEAK FORWARD SURGE CURRENT (A) FORWARD RECTIFIED CURRENT (A) 2 RESISTIVE OR INDUCTIVE LOAD WITH HEATSINK 0 0 25 50 75 100 125 150 175 CASE TEMPERATURE (oC) 50 25 0 1 10 NUMBER OF CYCLES AT 60 Hz 100 INSTANTANEOUS FORWARD CURRENT(A) FIG.3 TYPICAL INSTANTANEOUS FO

Features

- Glass passivated junction - Ideal for automated placement - Built-in strain relief - Ultrafast recovery time for high efficiency - Moisture sensitivity level: level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition - AEC-Q101 qualified.
