MUR420 - ULTRA FAST RECTIFIERS

Download the MUR420 datasheet PDF. This datasheet also covers the MUR405 variant, as both devices belong to the same ultra fast rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ultra fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375(9.5) 0.285(7.2).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MUR405-MDDELECTRONIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MUR420
Manufacturer MDD ELECTRONIC
File Size 77.77 KB
Description ULTRA FAST RECTIFIERS
Datasheet download datasheet MUR420 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MUR420 4 AMP ULTRA FAST RECTIFIER Digitron Semiconductors
MUR420 Glass Passivated High Efficiency Rectifier MIC
MUR420 Ultrafast Plastic Rectifier Vishay
MUR420 Super Fast Recovery Rectifier Micro Commercial Components
MUR420 (MUR420 / MUR460) ULTRAFAST RECTIFIERS Motorola

Other Datasheets by MDD ELECTRONIC

Part Number Description
MUR405 ULTRA FAST RECTIFIERS
MUR410 ULTRA FAST RECTIFIERS
MUR4100 ULTRA FAST RECTIFIERS
MUR415 ULTRA FAST RECTIFIERS
MUR480 ULTRA FAST RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

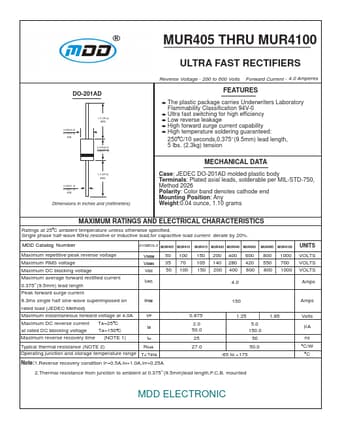

MUR405 THRU MUR4100 ULTRA FAST RECTIFIERS Reverse Voltage - 200 to 600 Volts Forward Current - 4.0 Amperes DO-201AD FEATURES The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ultra fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375(9.5) 0.285(7.2) MECHANICAL DATA 1.0 (25.4) MIN. 0.052(1.3) 0.048(1.2) DIA. Dimensions in inches and (millimeters) Case: JEDEC DO-201AD molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.04 ounce, 1.
