MBRF10100CT-Y, MBRF1045CT-Y - Dual Common Cathode Schottky Rectifier

Taiwan Semiconductor

The MBRF10100CT-Y by Taiwan Semiconductor is a Dual Common Cathode Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

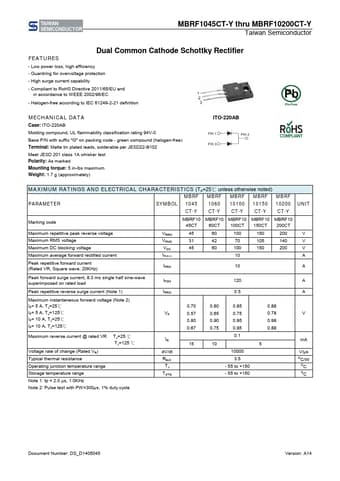

MBRF10100CT-Y Dual Common Cathode Schottky Rectifier by Taiwan Semiconductor - Datasheet Preview — Official preview page of the **MBRF10100CT-Y** Dual Common Cathode Schottky Rectifier datasheet (Taiwan Semiconductor).

Datasheet Details

Part number	MBRF10100CT-Y, MBRF1045CT-Y
Manufacturer	Taiwan Semiconductor
File Size	215.60 KB
Description	Dual Common Cathode Schottky Rectifier
Datasheet	MBRF1045CT-Y-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MBRF10100CT-Y, MBRF1045CT-Y. Please refer to the document for exact specifications by model.
Additional preview pages of the MBRF10100CT-Y datasheet.

MBRF10100CT-Y Product details

Description

Green compound AVERAGE FORWARD A CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 15 10 5 RESISTIVE OR INDUCTIVE LOAD WITH HEATSINK 0 50 60 70 80 90 100 110 120 130 140 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG 150 8.3ms Single Half Sine Wave 125 100 75 50 25 0 0 1 10 NUMBER OF CYCLES AT 60 Hz 100 INSTANTANEOUS FORWARD CURRENT (A) FIG.3 TYPICAL FORWARD CHARACTERISTICS PER LEG 100 Pulse Width=300μs 1% Duty Cy

Features

- Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition.
