DTA144TM - PNP Small Signal Transistor

Product Overview

Taiwan Semiconductor

Part number	DTA144TM
Manufacturer	Taiwan Semiconductor
File Size	199.55 KB
Description	PNP Small Signal Transistor
Datasheet	DTA144TM Datasheet

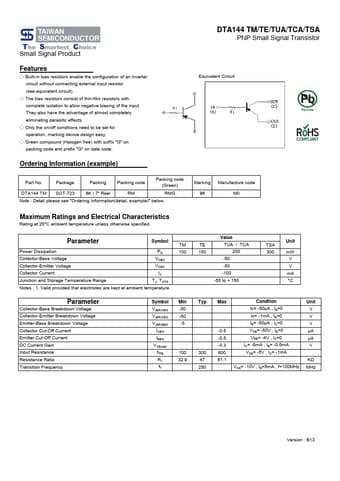

Additional preview pages of the DTA144TM datasheet.

◇ Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistor (see equivalent circuit). ◇ The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. ◇ Only the on/off conditions need to be set for operation, marking device design easy. ◇ Green compound (Halogen free) with suffix "G" on packing code and prefi.
