DTA144ECA - PNP Small Signal Transistor

Product Overview

Taiwan Semiconductor

Part number	DTA144ECA
Manufacturer	Taiwan Semiconductor
File Size	203.26 KB
Description	PNP Small Signal Transistor
Datasheet	DTA144ECA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTA144ECA, DTA144EM. Please refer to the document for exact specifications by model.

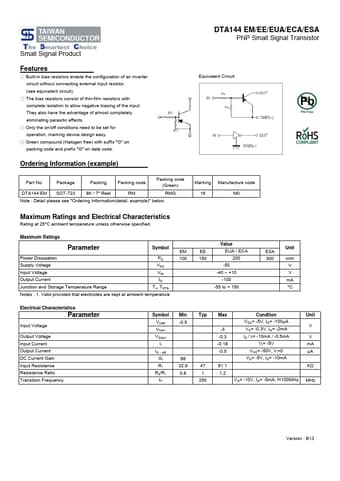

Additional preview pages of the DTA144ECA datasheet.

◇ Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistor (see equivalent circuit). ◇ The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. ◇ Only the on/off conditions need to be set for operation, marking device design easy. ◇ Green compound (Halogen free) with suffix "G" on packing code and prefi.
