ABS20M - 1000V Glass Passivated Bridge Rectifier

The ABS20M by Taiwan Semiconductor is a 1000V Glass Passivated Bridge Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

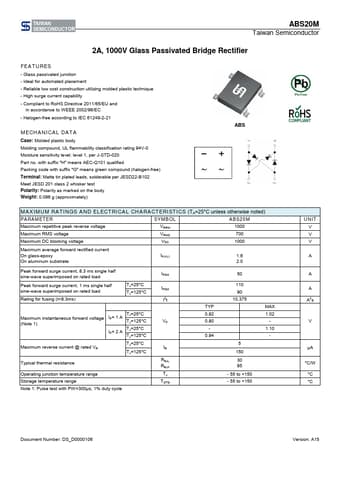

Official preview page of the ABS20M 1000V Glass Passivated Bridge Rectifier datasheet (Taiwan Semiconductor).

ABS20M Product details

Description

AEC-Q101 qualified Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25°C unless otherwise noted) FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 2.5 FIG.2 TYPICAL REVERSE CHARACTERISTICS 100 INSTANTANEOUS REVERSE CURRENT (μA) AVERAGE FORWARD CURRENT (A) 2 TJ=125°C 10 1.5 1 1 0.5 0 0 On Aluminum substrate 25 50 75 100 AMBIENT TEMPERATURE (oC) 125 150 0.1 0.01 0 TJ=25°C 20 40 60 80 PERCENT OF RATED PEAK REVERSE VOLYAGE(%) 100 PEAK FORWARD SURGE CURRENT (A) 50 40 30 20 10 0 1 FIG
