ABS20 - Glass Passivated Bridge Rectifier

Name: ABS20
SKU: ABS20-1422621

UPM

The ABS20 by UPM is a Glass Passivated Bridge Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	ABS20
Manufacturer	UPM
File Size	361.00 KB
Description	Glass Passivated Bridge Rectifier
Datasheet	ABS20-UPM.pdf

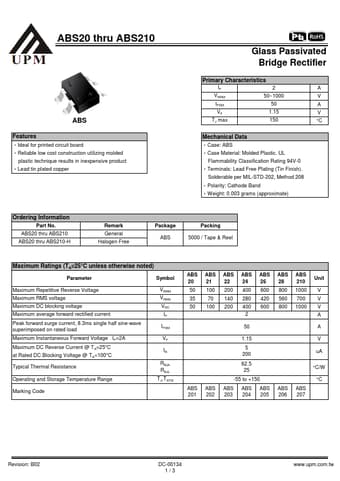

Additional preview pages of the ABS20 datasheet.

‧Ideal for printed circuit board ‧Reliable low cost construction utilizing molded plastic technique results in inexpensive product ‧Lead tin plated copper Glass Passivated Bridge Rectifier Primary Characteristics IF 2 VRRM 50~1000 IFSM 50 VF 1.15 TJ max 150 A V A V °C Mechanical Data ‧Case: ABS ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight:.
