SDBS13, SDB13 - (SDB12 - SDB110) Schottky Barrier Rectifiers

Taiwan Semiconductor Company

Datasheet Details

Part number	SDBS13, SDB13
Manufacturer	Taiwan Semiconductor ↗ Company
File Size	131.03 KB
Description	(SDB12 - SDB110) Schottky Barrier Rectifiers
Datasheet	SDB13_TaiwanSemiconductorCompany.pdf
Note	This datasheet PDF includes multiple part numbers: SDBS13, SDB13. Please refer to the document for exact specifications by model.

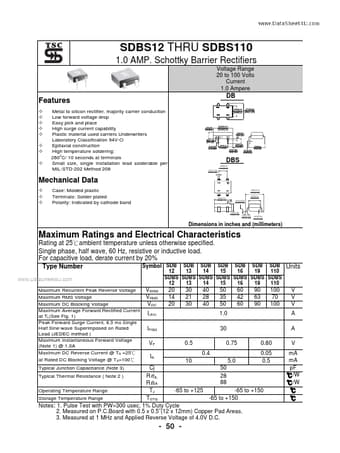

Metal to silicon rectifier, majority carrier conduction Low forward voltage drop Easy pick and place High surge current capability Plastic material used carriers Underwriters Laboratory Classification 94V-O Epitaxial construction High temperature soldering: o 260 C/ 10 seconds at terminals Small size, single installation lead solderable per MIL-STD-202 Method 208 DB DBS .047(1.20) .040(1.02) .205(5.2) .195(5.0) Mechanical Data Case: Molded plastic Terminals: Solder plated Polarity: Indicated.
