SDB05S120 - Silicon Carbide Power Schottky Diode

Datasheet Summary

Features

  • - Positive Temperature Coefficient for Ease of Paralleling - Temperature Independent Switching Behavior - 175 °C Maximum Operating Temperature - Zero Reverse Recovery Current - Zero Forward Recovery Voltage Silicon Carbide SDB05S120 Product Summary VDC 1200 V IF 5 A Qc 20 nC.

📥 Download Datasheet

Datasheet preview – SDB05S120

Datasheet Details

Part number SDB05S120
Manufacturer SemiSouth
File Size 544.87 KB
Description Silicon Carbide Power Schottky Diode
Datasheet download datasheet SDB05S120 Datasheet
Additional preview pages of the SDB05S120 datasheet.

📁 Similar Datasheet

  • SDB0530 - Schottky Barrier Diode (KODENSHI)
  • SDB0530 - Schottky Barrier Diode (AUK)
  • SDB0540 - Schottky Barrier Rectifier (KODENSHI)
  • SDB0540 - Schottky Barrier Diode (AUK)
  • SDB0740 - Schottky Barrier Rectifier (KODENSHI)
  • SDB101 - (SDB101 - SDB107) 1 Amp Single Phase Glass Passivated Bridge Rectifier (Micro Commercial Components)
  • SDB10100D - HIGH VOLTAGE SCHOTTKY RECTIFIER (AUK)
  • SDB10100DI - Schottky Barrier Rectifier (AUK)
  • SDB10100PH - HIGH VOLTAGE SCHOTTKY RECTIFIER (AUK)
  • SDB10100PI - DUAL COMMON CATHODE SCHOTTKY RECTIFIER (AUK)
Other Datasheets by SemiSouth
  • SDB10S120 - Silicon Carbide Power Schottky Diode

Full PDF Text Transcription

Click to expand full text

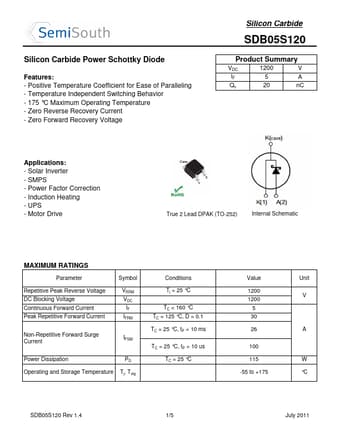

Silicon Carbide Power Schottky Diode Features: - Positive Temperature Coefficient for Ease of Paralleling - Temperature Independent Switching Behavior - 175 °C Maximum Operating Temperature - Zero Reverse Recovery Current - Zero Forward Recovery Voltage Silicon Carbide SDB05S120 Product Summary VDC 1200 V IF 5 A Qc 20 nC Applications: - Solar Inverter - SMPS - Power Factor Correction - Induction Heating - UPS - Motor Drive True 2 Lead DPAK (TO-252) Internal Schematic MAXIMUM RATINGS Parameter Repetitive Peak Reverse Voltage DC Blocking Voltage Continuous Forward Current Peak Repetitive Forward Current Symbol VRRM VDC IF IFRM Non-Repetitive Forward Surge Current IFSM Power Dissipation PD Operating and Storage Temperature Tj, Tstg Conditions Tj = 25 °C TC < 160 °C TC = 125 °
