2SA1416 - Transistor

Name: 2SA1416
SKU: 2SA1416-741044

TY Semiconductor

The 2SA1416 by TY Semiconductor is a Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1416
Manufacturer	TY Semiconductor
File Size	581.96 KB
Description	Transistor
Datasheet	2SA1416_TYSemiconductor.pdf

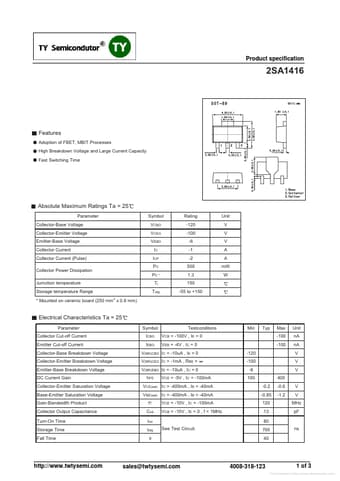

Additional preview pages of the 2SA1416 datasheet.

Adoption of FBET, MBIT Processes High Breakdown Voltage and Large Current Capacity Fast Switching Time Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Current (Pulse) Collector Power Dissipation Jumction temperature Storage temperature Range.
Mounted on ceramic board (250 mm x 0.8 mm) 2 Symbol VCBO VCEO VEBO IC ICP PC PC.
Tj Tstg Rating -120 -100 -6 -1 -2 500 1.3 150 -55 to +150 Unit V V V.
