OPB820S5, OPB820 Slotted Optical Switch

Description

Slotted Optical Switch OPB820S, OPB821Z, OPB821S_Z .
Each OPB820S and OPB821Z device consists of an infrared emitting diode (LED, 890 nm center wavelength) and a NPN silicon phototransistor mounted in a.

📥 Download Datasheet

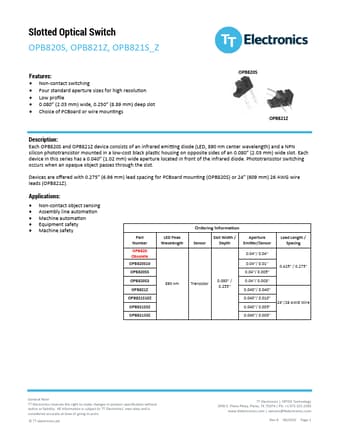

OPB820S5 Datasheet Preview — This datasheet PDF includes multiple part numbers: OPB820S5, OPB820. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: OPB820S5, OPB820
Manufacturer: TT
File Size: 470.49 KB
Datasheet: OPB820-TT.pdf
Description: Slotted Optical Switch
Note: This datasheet PDF includes multiple part numbers: OPB820S5, OPB820.
Please refer to the document for exact specifications by model.

Features

* Non-contact switching
* Four standard aperture sizes for high resolution
* Low profile
* 0.080” (2.03 mm) wide, 0.250” (8.89 mm) deep slot

Applications

* Non-contact object sensing
* Assembly line automation
* Machine automation
* Equipment safety
* Machine safety Part Number OPB820 Obsolete OPB820S10 OPB820S5 OPB820S3 OPB821Z OPB821S10Z OPB821S5Z OPB821S3Z LED Peak Wavelength Ordering Information Slot W
