OPB820 - Slotted Optical Switch

Description

Each OPB820 and OPB821Z device consists of an infrared emitting diode (LED, 890 nm center wavelength) and a NPN silicon phototransistor mounted in a low-cost black plastic housing on opposite sides of an 0.080” (2.03 mm) wide slot.

Features

  • Non-contact switching.
  • Four standard aperture sizes for high resolution.
  • Low profile.
  • 0.080” (2.03 mm) wide, 0.250” (8.89 mm) deep slot.
  • Choice of PCBoard or wire mountings OPB820 OPB821Z.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
OPB821 Slotted Optical Switches OPTEK
OPB821S10 Slotted Optical Switches OPTEK
OPB821S3 Slotted Optical Switches OPTEK
OPB821S5 Slotted Optical Switches OPTEK
OPB823A SLOTTED OPTICAL SWITCHES ETC

Other Datasheets by TT Electronics

Part Number Description
OPB820S Slotted Optical Switch
OPB820S10 Slotted Optical Switch
OPB820S3 Slotted Optical Switch
OPB820S5 Slotted Optical Switch
OPB821S10Z Slotted Optical Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

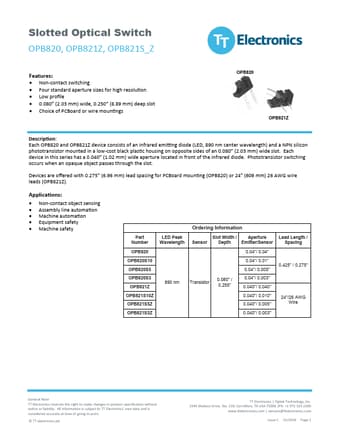

Slotted Optical Switch OPB820, OPB821Z, OPB821S_Z Features:  Non-contact switching  Four standard aperture sizes for high resolution  Low profile  0.080” (2.03 mm) wide, 0.250” (8.89 mm) deep slot  Choice of PCBoard or wire mountings OPB820 OPB821Z Description: Each OPB820 and OPB821Z device consists of an infrared emitting diode (LED, 890 nm center wavelength) and a NPN silicon phototransistor mounted in a low-cost black plastic housing on opposite sides of an 0.080” (2.03 mm) wide slot. Each device in this series has a 0.040” (1.02 mm) wide aperture located in front of the infrared diode. Phototransistor switching occurs when an opaque object passes through the slot. Devices are offered with 0.275” (6.
