OPB700Z Reflective Object Sensor

OPB700Z Description

Reflective Object Sensor OPB700Z, OPB700ALZ OPB701Z, OPB701ALZ .
OPB700 and OPB700ALZ sensors consist of an infrared emitting diode and a NPN silicon phototransistor, mounted side-byside on converging optical axes.

OPB700Z Features

* Low profile to facilitate stacking
* Low cost plastic housing
* Choice of phototransistor or photodarlington output

OPB700Z Applications

* Non-contact reflective object sensor
* Assembly line automation
* Machine automation
* Machine safety
* End of travel sensor Part Number
* Door sensor OPB700Z OPB700ALZ OPB701Z OPB701ALZ LED Peak Wavelength 890 nm Ordering Information S

📥 Download Datasheet

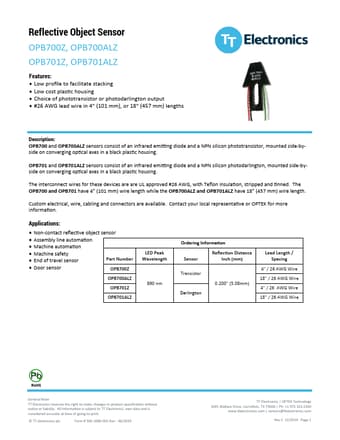

Preview of OPB700Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPB700Z
Manufacturer
TT
File Size
447.66 KB
Datasheet
OPB700Z-TT.pdf
Description
Reflective Object Sensor
