OPB701Z - Reflective Object Sensor

Download the OPB701Z datasheet PDF. This datasheet also covers the OPB700Z variant, as both devices belong to the same reflective object sensor family and are provided as variant models within a single manufacturer datasheet.

Description

OPB700 and OPB700ALZ sensors consist of an infrared emitting diode and a NPN silicon phototransistor, mounted side-byside on converging optical axes in a black plastic housing.

Features

  • Low profile to facilitate stacking.
  • Low cost plastic housing.
  • Choice of phototransistor or photodarlington output.
  • #26 AWG lead wire in 4” (101 mm), or 18” (457 mm) lengths.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (OPB700Z-TT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
OPB701 REFLECTIVE OBJECT SENSOR OPTEK
OPB701AL REFLECTIVE OBJECT SENSOR OPTEK
OPB700 REFLECTIVE OBJECT SENSOR OPTEK
OPB700AL REFLECTIVE OBJECT SENSOR OPTEK
OPB700TX Hi-Reliability Reflective Object Sensor OPTEK Technologies

Other Datasheets by TT Electronics

Part Number Description
OPB701ALZ Reflective Object Sensor
OPB700ALZ Reflective Object Sensor
OPB700TX High Reliability Reflective Object Sensor
OPB700TXV High Reliability Reflective Object Sensor
OPB700Z Reflective Object Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

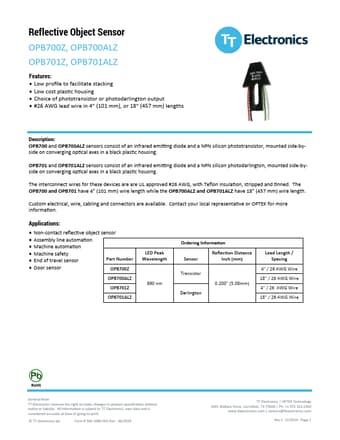

Reflective Object Sensor OPB700Z, OPB700ALZ OPB701Z, OPB701ALZ Features: • Low profile to facilitate stacking • Low cost plastic housing • Choice of phototransistor or photodarlington output • #26 AWG lead wire in 4” (101 mm), or 18” (457 mm) lengths Description: OPB700 and OPB700ALZ sensors consist of an infrared emitting diode and a NPN silicon phototransistor, mounted side-byside on converging optical axes in a black plastic housing. OPB701 and OPB701ALZ sensors consist of an infrared emitting diode and a NPN silicon photodarlington, mounted side-byside on converging optical axes in a black plastic housing. The interconnect wires for these devices are are UL approved #26 AWG, with Teflon insulation, stripped and tinned.
