ACS422D67, ACS422A67 - CODEC

📥 Download Datasheet

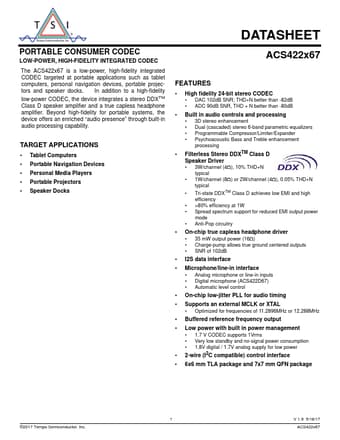

ACS422D67 Datasheet Preview — This datasheet PDF includes multiple part numbers: ACS422D67, ACS422A67. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ACS422D67, ACS422A67
Manufacturer	TSI
File Size	670.43 KB
Description	CODEC
Datasheet	ACS422A67-TSI.pdf
Note	This datasheet PDF includes multiple part numbers: ACS422D67, ACS422A67. Please refer to the document for exact specifications by model.

ACS422D67 Product details

Features

High fidelity 24-bit stereo CODEC.
DAC 102dB SNR; THD+N better than -82dB.
ADC 90dB SNR, THD + N better than -80dB.
Built in audio controls and processing.
3D stereo enhancement.
Dual (cascaded) stereo 6-band parametric equalizers.
Programmable Compressor/Limiter/Expander.
Psychoacoustic Bass and Treble enhancement processing.
Filterless Stereo DDXTM Class D Speaker Driver.
3W/channel (4), 10% THD+N typic.
