ACS402-5SB4 - QUAD AC LINE SWITCH ARRAY

Description

leThe ACS402 belongs to the AC line switches array ofamily built around the ASD™ concept.

This high sperformance device includes 4 bi-directional a.c.

bswitches able to control an 0.2 A resistive or inducOtive load device.

Features

  • )s 4 high voltage AC switch array t(ss Blocking voltage: VDRM / VRRM = 500V cs Clamping voltage: VCL = 600V us Nominal current: IT(RMS) = 0.2 A per switch ds Nominal current: IT(RMS) = 0.4 A for the total roarray Ps Switch integrated driver s Triggering current is sourced by the gate tes Gate triggering current : IGT < 10 mA soleBENEFITS bs Needs no external overvoltage protection. Os Enables the equipment to meet IEC61000-4-5 -standard. )s Miniaturizes 4 switches in 1 package. t(ss Reduces the.

📥 Download Datasheet

Datasheet preview – ACS402-5SB4

Datasheet Details

Part number ACS402-5SB4
Manufacturer STMicroelectronics
File Size 101.82 KB
Description QUAD AC LINE SWITCH ARRAY
Datasheet download datasheet ACS402-5SB4 Datasheet
Additional preview pages of the ACS402-5SB4 datasheet.

📁 Similar Datasheet

  • ACS401 - Acapella Optical Modem (Semtech Corporation)
  • ACS406CS - Acapella Optical Modem (Semtech Corporation)
  • ACS411CS - Acapella Optical Modem (Semtech Corporation)
  • ACS422A67 - CODEC (TSI)
  • ACS422D67 - CODEC (TSI)
  • ACS00MS - Radiation Hardened Quad 2-Input NAND Gate (Intersil Corporation)
  • ACS02MS - Radiation Hardened Quad 2-Input NOR Gate (Intersil Corporation)
  • ACS03MS - Radiation Hardened Quad 2-Input NAND Gate (Intersil Corporation)
  • ACS04MS - Radiation Hardened Hex Inverter (Intersil Corporation)
  • ACS05MS - Radiation Hardened Hex Inverter (Intersil Corporation)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text

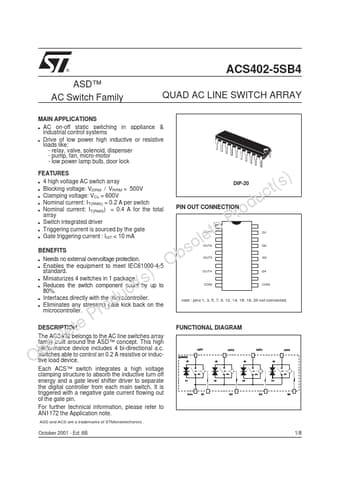

® ASD™ AC Switch Family ACS402-5SB4 QUAD AC LINE SWITCH ARRAY MAIN APPLICATIONS s AC on-off static switching in appliance & industrial control systems s Drive of low power high inductive or resistive loads like: - relay, valve, solenoid, dispenser - pump, fan, micro-motor - low power lamp bulb, door lock FEATURES )s 4 high voltage AC switch array t(ss Blocking voltage: VDRM / VRRM = 500V cs Clamping voltage: VCL = 600V us Nominal current: IT(RMS) = 0.2 A per switch ds Nominal current: IT(RMS) = 0.4 A for the total roarray Ps Switch integrated driver s Triggering current is sourced by the gate tes Gate triggering current : IGT < 10 mA soleBENEFITS bs Needs no external overvoltage protection. Os Enables the equipment to meet IEC61000-4-5 -standard. )s Miniaturizes 4 switches in 1 package.
