SSL24, SSL22 (SSL22 - SSL24) 2.0 AMPS. Surface Mount Low VF Schottky Barrier Rectifiers

SSL24 Description

SSL22 - SSL24 Taiwan Semiconductor 2A, 20V - 40V Surface Mount Schottky Barrier Rectifier .

SSL24 Features

* Low power loss, high efficiency
* Ideal for automated placement
* Guard ring for over-voltage protection
* High surge current capability
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

SSL24 Applications

* Switching mode power supply (SMPS)
* Adapters
* Monitor
* TV KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM 2 20 - 40 A V TJ MAX Package 125 °C DO-214AA (SMB) Configuration Signal Die MECHANICAL DATA
* Case: DO-214AA (SMB)
* Molding compound meets UL 94V-0 flam

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SSL24, SSL22. Please refer to the document for exact specifications by model.

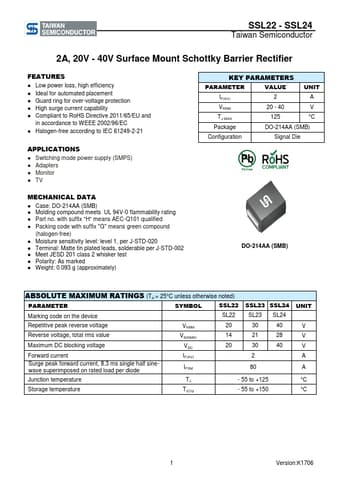

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSL24, SSL22
Manufacturer
TSC
File Size
241.36 KB
Datasheet
SSL22_TSC.pdf
Description
(SSL22 - SSL24) 2.0 AMPS. Surface Mount Low VF Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SSL24, SSL22.
Please refer to the document for exact specifications by model.
