SSL24B Surface Mount Schottky Barrier Rectifier

SSL24B Description

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 40V Forward Current - 2.0A .
1 Cathode 2 Anode 2 1 Top View Marking Code: SSL24 Simplified outline SMB and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C.

SSL24B Features

* Metal silicon junction, majority carrier conduction

SSL24B Applications

* Low power loss, high efficiency
* High forward surge current capability
* For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA
* Case: SMB
* Terminals: Solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

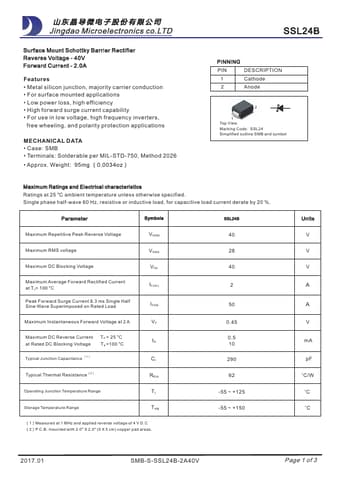

Preview of SSL24B PDF
