TMPF5N60AZG, TMP5N60AZ - N-channel MOSFET

📥 Download Datasheet

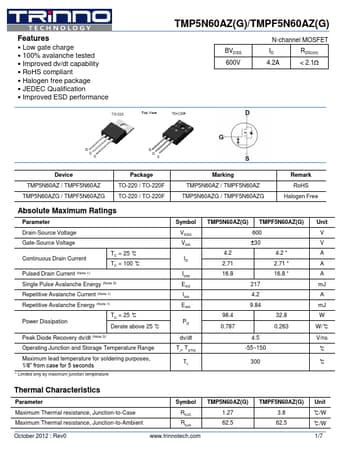

TMPF5N60AZG Datasheet Preview — This datasheet PDF includes multiple part numbers: TMPF5N60AZG, TMP5N60AZ. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TMPF5N60AZG, TMP5N60AZ
Manufacturer	TRinno
File Size	596.61 KB
Description	N-channel MOSFET
Datasheet	TMP5N60AZ-TRinno.pdf
Note	This datasheet PDF includes multiple part numbers: TMPF5N60AZG, TMP5N60AZ. Please refer to the document for exact specifications by model.

TMPF5N60AZG Product details

Features

Low gate charge.
100% avalanche tested.
Improved dv/dt capability.
RoHS compliant.
Halogen free package.
JEDEC Qualification.
Improved ESD performance TMP5N60AZ(G)/TMPF5N60AZ(G) BVDSS 600V N-channel MOSFET ID RDS(on) 4.2A < 2.1W Device TMP5N60AZ / TMPF5N60AZ TMP5N60AZG / TMPF5N60AZG Package TO-220 / TO-220F TO-220 / TO-220F Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Not.
