TMPF5N50SG, TMP5N50SG - N-channel MOSFET

📥 Download Datasheet

TMPF5N50SG Datasheet Preview — This datasheet PDF includes multiple part numbers: TMPF5N50SG, TMP5N50SG. Please refer to the document for exact specifications by model.

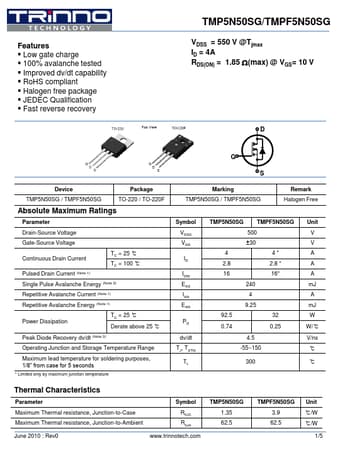

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TMPF5N50SG, TMP5N50SG
Manufacturer	TRinno
File Size	344.98 KB
Description	N-channel MOSFET
Datasheet	TMP5N50SG-TRinno.pdf
Note	This datasheet PDF includes multiple part numbers: TMPF5N50SG, TMP5N50SG. Please refer to the document for exact specifications by model.

TMPF5N50SG Product details

Features

Low gate charge.
100% avalanche tested.
Improved dv/dt capability.
RoHS compliant.
Halogen free package.
JEDEC Qualification.
Fast reverse recovery TMP5N50SG/TMPF5N50SG VDSS = 550 V @Tjmax ID = 4A RDS(ON) = 1.85 W(max) @ VGS= 10 V D G S Device Package TMP5N50SG / TMPF5N50SG TO-220 / TO-220F Absolute Maximum Ratings Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note 1) TC = 25 ℃ TC = 100 ℃ Single.
