1N6096

The 1N6096 is Schottky Diode designed by TRANSYS Electronics Limited.

Product Overview

TRANSYS Electronics Limited

Part number	1N6096
Manufacturer	TRANSYS Electronics Limited
File Size	166.12 KB
Description	Schottky Diode
Datasheet	1N6096_TRANSYSElectronicsLimited.pdf

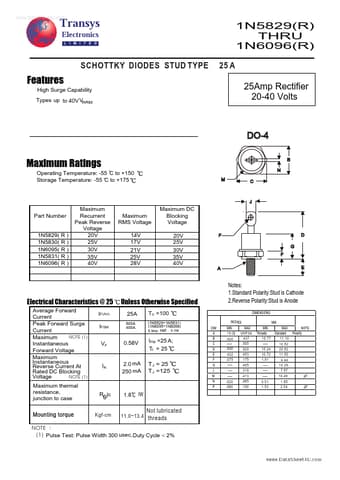

Additional preview pages of the 1N6096 datasheet.

High Surge Capability Types up to 40V VRRM DO-4 Maximum Ratings Operating Temperature: -55 C to +150 Storage Temperature: -55 C to +175 N M C B J Part Number 1N5829( R ) 1N5830( R ) 1N6095( R ) 1N5831( R ) 1N6096( R ) Maximum Recurrent Peak Reverse Voltage 20V 25V 30V 35V 40V Maximum RMS Voltage 14V 17V 21V 25V 28V Maximum DC Blocking Voltage 20V 25V 30V 35V 40V P D G F A E Electrical Characteristics @ 25 Average Forward Current Peak Forward Surge Current NOTE (1) Maximum Instantaneo.
