1N6095

The 1N6095 is Schottky Diode designed by TRANSYS Electronics Limited.

Product Overview

TRANSYS Electronics Limited

Part number	1N6095, 1N6096
Manufacturer	TRANSYS Electronics Limited
File Size	166.12 KB
Description	Schottky Diode
Datasheet	1N6096_TRANSYSElectronicsLimited.pdf
Note	This datasheet PDF includes multiple part numbers: 1N6095, 1N6096. Please refer to the document for exact specifications by model.

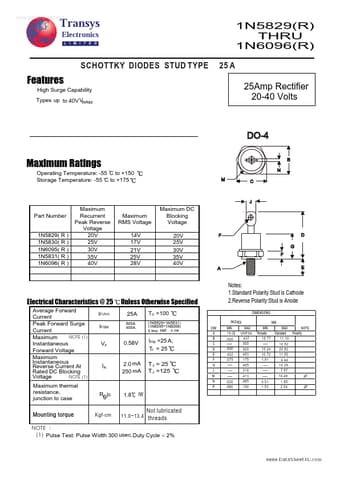

Additional preview pages of the 1N6095 datasheet.

High Surge Capability Types up to 40V VRRM DO-4 Maximum Ratings Operating Temperature: -55 C to +150 Storage Temperature: -55 C to +175 N M C B J Part Number 1N5829( R ) 1N5830( R ) 1N6095( R ) 1N5831( R ) 1N6096( R ) Maximum Recurrent Peak Reverse Voltage 20V 25V 30V 35V 40V Maximum RMS Voltage 14V 17V 21V 25V 28V Maximum DC Blocking Voltage 20V 25V 30V 35V 40V P D G F A E Electrical Characteristics @ 25 Average Forward Current Peak Forward Surge Current NOTE (1) Maximum Instantaneo.
