DG183 - High-Speed Drivers with Dual DPST JFET Switches

Description

The DG183/184/185 are precision dual double-pole, single-throw (DPST) analog switches designed to provide accurate switching of video and audio signals.

This series is ideally suited for applications requiring a constant on-resistance over the entire analog range.

Features

  • D Constant On-Resistance Over Entire Analog Range D Low Leakage D Low Crosstalk D Break-Before-Make Switching D Rad Hardness Benefits D D D D D Low Distortion Eliminates Large Signal Errors High Precision Improved Channel Isolation Eliminates Inadvertent Shorting Between Channels D Fault Protection.

📥 Download Datasheet

Datasheet Details

Part number DG183
Manufacturer TEMICs
File Size 113.84 KB
Description High-Speed Drivers with Dual DPST JFET Switches
Datasheet download datasheet DG183 Datasheet

📁 Similar Datasheet

  • DG183 - High-Speed Drivers and Dual DPST JFET Switches (Vishay Siliconix)
  • DG180 - High-Speed Drivers with Dual SPST JFET Switches (Vishay Siliconix)
  • DG181 - High-Speed Drivers with JFET Switch (Intersil Corporation)
  • DG181 - High-Speed Drivers with Dual SPST JFET Switches (Vishay Siliconix)
  • DG182 - High-Speed Drivers with Dual SPST JFET Switches (Vishay Siliconix)
  • DG182AA - High-Speed Drivers with JFET Switch (Intersil Corporation)
  • DG182AP - High-Speed Drivers with JFET Switch (Intersil Corporation)
  • DG182BA - High-Speed Drivers with JFET Switch (Intersil Corporation)
  • DG182BP - High-Speed Drivers with JFET Switch (Intersil Corporation)
  • DG184 - High-Speed Drivers and Dual DPST JFET Switches (Vishay Siliconix)
Other Datasheets by TEMICs
  • DG183BP - High-Speed Drivers with Dual DPST JFET Switches
  • DG184 - High-Speed Drivers with Dual DPST JFET Switches
  • DG184BP - High-Speed Drivers with Dual DPST JFET Switches
  • DG185 - High-Speed Drivers with Dual DPST JFET Switches

Full PDF Text Transcription

Click to expand full text

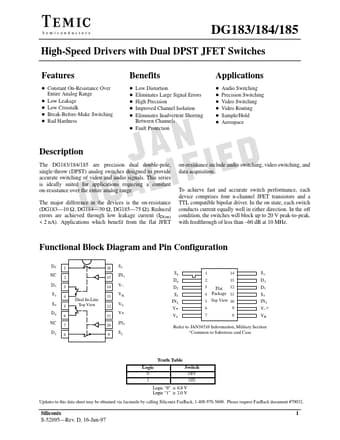

DG183/184/185 High-Speed Drivers with Dual DPST JFET Switches Features D Constant On-Resistance Over Entire Analog Range D Low Leakage D Low Crosstalk D Break-Before-Make Switching D Rad Hardness Benefits D D D D D Low Distortion Eliminates Large Signal Errors High Precision Improved Channel Isolation Eliminates Inadvertent Shorting Between Channels D Fault Protection Applications D D D D D D Audio Switching Precision Switching Video Switching Video Routing Sample/Hold Aerospace Description The DG183/184/185 are precision dual double-pole, single-throw (DPST) analog switches designed to provide accurate switching of video and audio signals. This series is ideally suited for applications requiring a constant on-resistance over the entire analog range.
