TMXTA04 - SAW Bandpass Filter

Name: TMXTA04
SKU: TMXTA04-662090

TEMEX

The TMXTA04 by TEMEX is a SAW Bandpass Filter. Below is the official datasheet preview.

Datasheet Details

Part number	TMXTA04
Manufacturer	TEMEX
File Size	286.17 KB
Description	SAW Bandpass Filter
Datasheet	TMXTA04_TEMEX.pdf

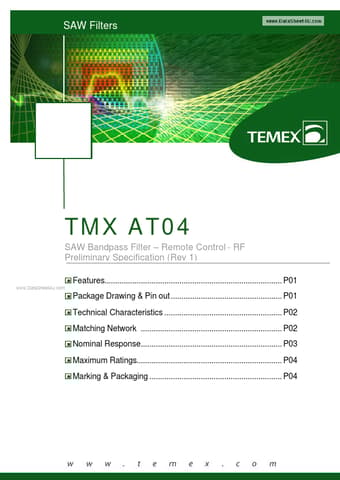

Additional preview pages of the TMXTA04 datasheet.

P01 www. DataSheet4U. com Package Drawing & Pin out P01 Technical Characteristics P02 Matching Network P02 Nominal Response P03 Maximum Ratings P04 Marking & Packaging P04 TMX AT04 SAW Bandpass Filter.
Remote Control - RF Preliminary Specification (Rev.1)- RF January 09 , 2006 th Preliminary Specification (Rev 1) Features q q q q q RF SAW Filter for Remote Control 868.3 MHz Center Frequency 0.78 MHz useable Passband 50 Ohms Single Configuration with external matching network Cerami.
