TMXTA02 - SAW Bandpass Filter

Name: TMXTA02
SKU: TMXTA02-662088

TEMEX

The TMXTA02 by TEMEX is a SAW Bandpass Filter. Below is the official datasheet preview.

Datasheet Details

Part number	TMXTA02
Manufacturer	TEMEX
File Size	313.53 KB
Description	SAW Bandpass Filter
Datasheet	TMXTA02_TEMEX.pdf
Additional preview pages of the TMXTA02 datasheet.

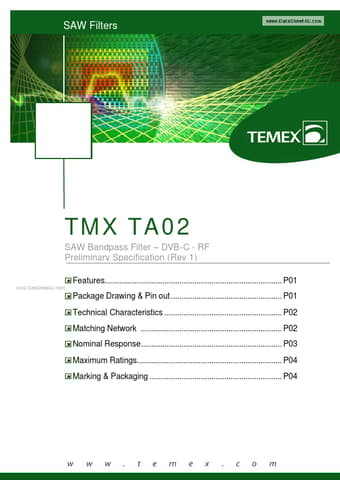

P01 www. DataSheet4U. com Package Drawing & Pin out P01 Technical Characteristics P02 Matching Network P02 Nominal Response P03 Maximum Ratings P04 Marking & Packaging P04 TMX TA02 SAW Bandpass Filter.
DVB-C - RF Preliminary Specification (Rev.1)- RF January 09 , 2006 th Preliminary Specification (Rev 1) Features q q q q q RF SAW Filter for DVB-C 1120 MHz Center Frequency 32 MHz useable Passband 200 Ohms Balance Configuration Ceramic package for Surface Mounted Technology Package.
