LDT565620T - Transformers

TDK

📥 Download Datasheet

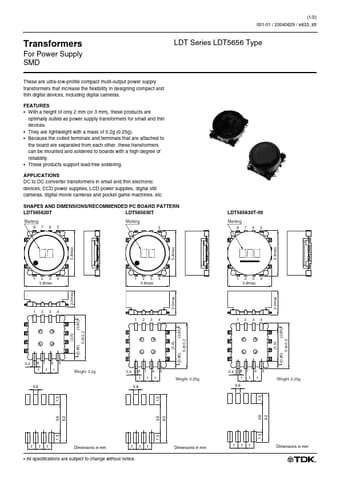

LDT565620T Datasheet Preview — Preview of LDT565620T PDF

datasheet Preview Page 2

Datasheet Details

Part number	LDT565620T
Manufacturer	TDK
File Size	65.30 KB
Description	Transformers
Datasheet	LDT565620T-TDK.pdf

LDT565620T Product details

Features

With a height of only 2 mm (or 3 mm), these products are optimally suited as power supply transformers for small and thin devices.
They are lightweight with a mass of 0.2g (0.25g).
Because the coiled terminals and terminals that are attached to the board are separated from each other, these transformers can be mounted and soldered to boards with a high degree of reliability.
These products support lead-free soldering.
