LDT0696-50R Datasheet (Linkcom)

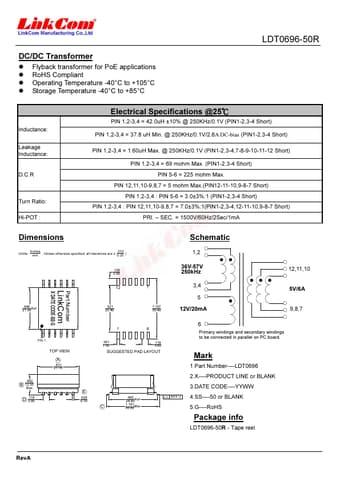

LDT0696-50R, DC/DC Transformer

DC/DC Transformer Flyback transformer for PoE applications RoHS Compliant Operating Temperature -40°C to +105°C Storage Temperature -40°C to +85°C LDT0696-50R Inductance: Leakage Inductance: D.C.R Turn Ratio: Hi-POT : Electrical Specifications @25℃ PIN 1,2-3,4 = 42.0uH ±10% @ 250KHz/0.1V (PIN1-2,3-4 Short) PIN 1,2-3,4 = 37.8 uH Min.

@ 250KHz/0.1V/2.6A DC-bias (PIN1-2,3-4 Short) PIN 1,2-3,4 = 1.60uH Max.

@ 250KHz/0.1V (PIN1-2,3-4,7-8-9-10-11-12 Short) PIN 1,2-3,4 = 69 mohm Max.

(PIN1-2,3-4 Sho
