TZ120B, TZ100B - 1W Zener Diodes

TAITRON

The TZ120B by TAITRON is a 1W Zener Diodes. Below is the official datasheet preview.

📥 Download Datasheet

TZ120B 1W Zener Diodes by TAITRON - Datasheet Preview — Official preview page of the **TZ120B** 1W Zener Diodes datasheet (TAITRON).

Datasheet Details

Part number	TZ120B, TZ100B
Manufacturer	TAITRON
File Size	187.85 KB
Description	1W Zener Diodes
Datasheet	TZ100B_TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: TZ120B, TZ100B. Please refer to the document for exact specifications by model.
Additional preview pages of the TZ120B datasheet.

TZ120B Product details

Description

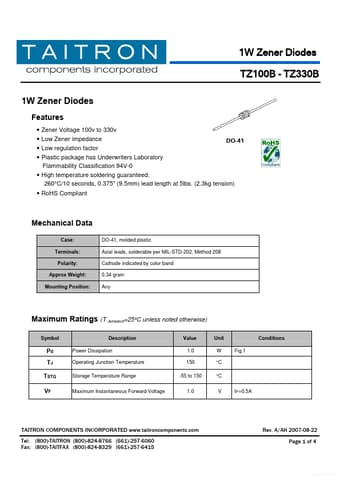

Power Dissipation Operating Junction Temperature Storage Temperature Range Maximum Instantaneous Forward Voltage Value 1.0 150 -55 to 150 1.0 Unit W °C °C V IF=0.5A Fig.1 Conditions Pd TJ TSTG VF TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415 Rev.A/AH 2007-08-22 Page 1 of 4 Free Datasheet http://www.datasheet4u.com/ 1W Zener Diodes TZ100B - TZ330B Electrical Characteristics (T Ambie

Features

Zener Voltage 100v to 330v.
Low Zener impedance DO-41.
Low regulation factor.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature soldering guaranteed: 260°C/10 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg tension).
RoHS Compliant Mechanical Data Case: Terminals: Polarity: Approx Weight: Mounting Position: DO-41, molded plastic Axial leads, solderable per MIL-STD-202, Method 208 Cathode ind.
