Description
Power Dissipation Operating Junction Temperature Storage Temperature Range Maximum Instantaneous Forward Voltage Value 1.0 150 -55 to 150 1.0 Unit W °C °C V IF=0.5A Fig.1 Conditions
Pd TJ TSTG VF
TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
Rev.A/AH 2007-08-22 Page 1 of 4

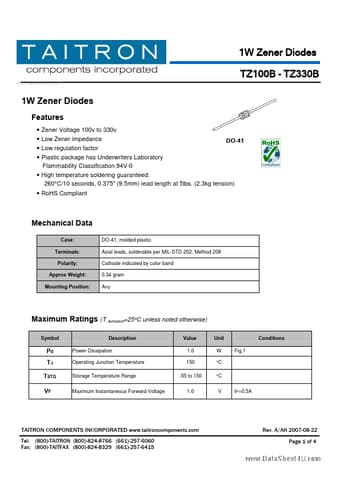

1W Zener Diodes TZ100B - TZ330B
www.datasheet4u.com
Electrical Characteristics (T Ambient=25ºC unless noted ot
Features
- Zener Voltage 100v to 330v.
- Low Zener impedance DO-41.
- Low regulation factor.
- Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
- High temperature soldering guaranteed: 260°C/10 seconds, 0.375" (9.5mm) lead length at 5lbs. (2.3kg tension).
- RoHS Compliant
Mechanical Data
Case: Terminals: Polarity: Approx Weight: Mounting Position: DO-41, molded plastic Axial leads, solderable per MIL-STD-202, Method 208 Cathode ind.
