SAC8.0, SAC50 500W Low Capacitance Transient Voltage Suppressor

TAITRON

Description

500W Low Capacitance Transient Voltage Suppressor SAC5.0 * SAC50 500W Low Capacitance Transient Voltage Suppressor .
Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse current with a 10/1000 us waveform Steady State Power Dissipation Operating Junction an.

📥 Download Datasheet

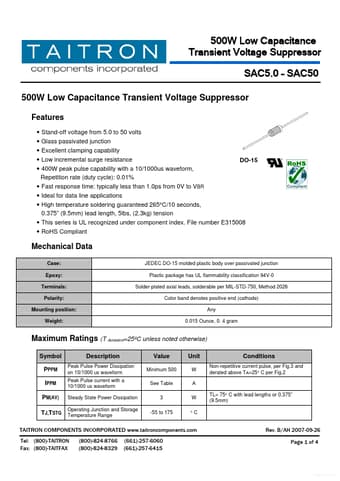

SAC8.0 Datasheet Preview — This datasheet PDF includes multiple part numbers: SAC8.0, SAC50. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SAC8.0, SAC50
Manufacturer: TAITRON
File Size: 155.12 KB
Datasheet: SAC50_TAITRON.pdf
Description: 500W Low Capacitance Transient Voltage Suppressor
Note: This datasheet PDF includes multiple part numbers: SAC8.0, SAC50.
Please refer to the document for exact specifications by model.

Features

* Stand-off voltage from 5.0 to 50 volts Glass passivated junction Excellent clamping capability Low incremental surge resistance DO-15
* 400W peak pulse capability with a 10/1000us waveform, Repetition rate (duty cycle): 0.01%
* Fast response t

Applications

* High temperature soldering guaranteed 265°C/10 seconds, 0.375” (9.5mm) lead length, 5lbs, (2.3kg) tension
* This series is UL recognized under component index. File number E315008
* RoHS Compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Mounting position: Weight:
