SW3R48S15WF, SW3R24S03WF - 3W Wide Input Single & Dual Output DC-DC Converter

Superworld

📥 Download Datasheet

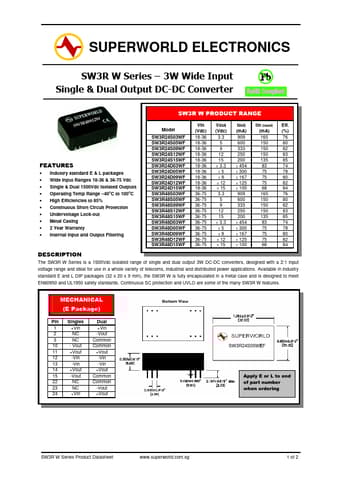

SW3R48S15WF Datasheet Preview — This datasheet PDF includes multiple part numbers: SW3R48S15WF, SW3R24S03WF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SW3R48S15WF, SW3R24S03WF
Manufacturer	Superworld
File Size	251.93 KB
Description	3W Wide Input Single & Dual Output DC-DC Converter
Datasheet	SW3R24S03WF_Superworld.pdf
Note	This datasheet PDF includes multiple part numbers: SW3R48S15WF, SW3R24S03WF. Please refer to the document for exact specifications by model.

SW3R48S15WF Product details

Description

The SW3R W Series is a 1500Vdc isolated range of single and dual output 3W DC-DC converters, designed with a 2:1 input voltage range and ideal for use in a whole variety of telecoms, industrial and distributed power applications.

Features

Industry standard E & L packages Wide Input Ranges 18-36 & 36-75 Vdc Single & Dual 1500Vdc Isolated Outputs Operating Temp Range.
40oC to 100oC High Efficiencies to 85% Continuous Short Circuit Protection Undervoltage Lock-out Metal Casing 2 Year Warranty Internal Input and Output Filtering.
