SW3205 - N-channel MOSFET

Description

This N-channel enhancement mode field-effect power transistor using SAMWIN semiconductor’s advanced planar stripe, DMOS technology intended for battery Operated systems like a DC-DC converter motor control , ups ,audio amplifier.

Features

  • High ruggedness.
  • RDS(ON) (Max 0.008 Ω)@VGS=10V.
  • Gate Charge (Typ 146nC).
  • Improved dv/dt Capability.
  • 100% Avalanche Tested TO-220 BVDSS : 55V ID : 110A RDS(ON) : 0.008 ohm 1 2 2 3 1 3 1. Gate 2. Drain 3. Source General.

📥 Download Datasheet

Datasheet Details

Part number SW3205
Manufacturer Samwin
File Size 809.56 KB
Description N-channel MOSFET
Datasheet download datasheet SW3205 Datasheet

📁 Similar Datasheet

  • SW30CPF06 - Diode (SEMIPOWER)
  • SW313 - Matched GaAs SPDT Switch (Tyco Electronics)
  • SW3317E-G - High Brightness White LED Lamp (AUK)
  • SW3318-G - High Brightness LED Lamp (AUK)
  • SW3318E-G - High Brightness White LED Lamp (AUK)
  • SW3372E-H - High Brightness White LED Lamp (AUK)
  • SW3518S - Total Solution Include PD (ISMARTWARE)
  • SW3522 - PD Solution (ISMARTWARE)
  • SW3526 - A multi-fast charging protocol solution supporting PD (ISMARTWARE)
  • SW3556 - A dual-C-port charging solution supporting multiple fast charging protocol (ISMARTWARE)
Other Datasheets by Samwin
  • SW3205B - N-channel Enhanced mode TO-220 MOSFET
  • SW30N06 - N-channel MOSFET
  • SW3710 - N-channel MOSFET
  • SW3N80 - N-channel MOSFET
  • SW3N80A - N-channel MOSFET
  • SW3N80C - N-channel Enhanced mode TO-220F/TO-251/TO-252 MOSFET
  • SW3N90U - N-channel MOSFET

Full PDF Text Transcription

Click to expand full text

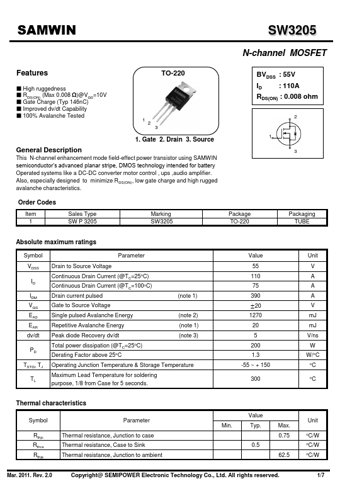

www.DataSheet.co.kr SAMWIN SW3205 N-channel MOSFET Features ■ High ruggedness ■ RDS(ON) (Max 0.008 Ω)@VGS=10V ■ Gate Charge (Typ 146nC) ■ Improved dv/dt Capability ■ 100% Avalanche Tested TO-220 BVDSS : 55V ID : 110A RDS(ON) : 0.008 ohm 1 2 2 3 1 3 1. Gate 2. Drain 3. Source General Description This N-channel enhancement mode field-effect power transistor using SAMWIN semiconductor’s advanced planar stripe, DMOS technology intended for battery Operated systems like a DC-DC converter motor control , ups ,audio amplifier. Also, especially designed to minimize RDS(ON), low gate charge and high rugged avalanche characteristics.
