TP0616 P-Channel Enhancement-Mode Vertical CMOS Power FETs

TP0616 Description

TP0616 TP0620 Low Threshold P-Channel Enhancement-Mode Vertical DMOS FETs Ordering Information BVDSS / BVDGS -160V RDS(ON) (max) 12Ω -200V 12Ω .

TP0616 Features

* s Low threshold
* -2.4 V max s High input impedance s Low input capacitance

TP0616 Applications

* s Logic level interfaces
* ideal for TTL and CMOS s Solid state relays s Battery operated systems s Photo voltaic drives s Analog switches s General purpose line drivers s Telecom switches Low Threshold DMOS Technology These low threshold enhancement-mode (normally-off) transistors utilize

📥 Download Datasheet

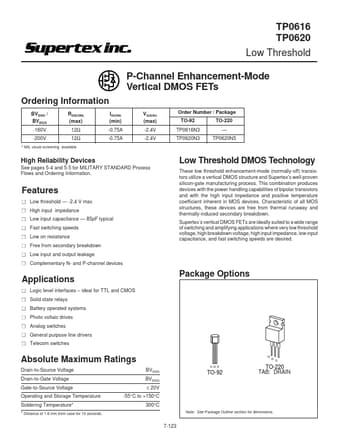

Preview of TP0616 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP0616
Manufacturer
Supertex
File Size
27.64 KB
Datasheet
TP0616-Supertex.pdf
Description
P-Channel Enhancement-Mode Vertical CMOS Power FETs
