TP0610T P-Channel Vertical DMOS FET

TP0610T Description

TP0610T P-Channel Enhancement-Mode Vertical DMOS FET .
The TP0610T is a low-threshold, Enhancement-mode (normally-off) transistor that utilizes a vertical DMOS structure and a well-proven silicon gate manu.

TP0610T Features

* High Input Impedance and High Gain
* Low Power Drive Requirement
* Ease of Paralleling
* Low CISS and Fast Switching Speeds
* Excellent Thermal Stability
* Integral Source-Drain Diode

TP0610T Applications

* Logic-Level Interfaces (Ideal for TTL and CMOS)
* Solid-State Relays
* Battery-Operated Systems
* Photo-Voltaic Drives
* Analog Switches
* Power Management

📥 Download Datasheet

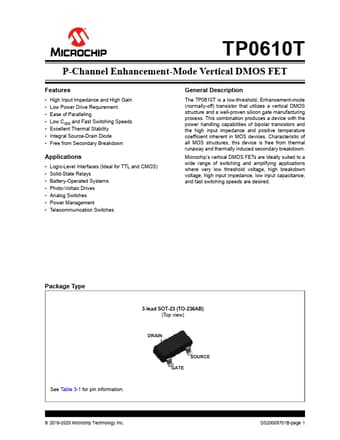

Preview of TP0610T PDF
datasheet Preview Page 2 datasheet Preview Page 3
