SCQH040N120 - 1200V N-Channel SiC Power MOSFET

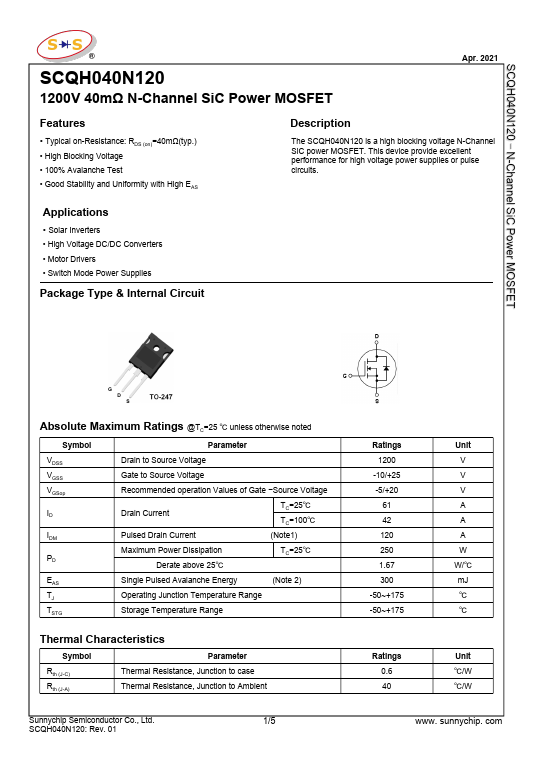

The SCQH040N120 by Sunnychip is a 1200V N-Channel SiC Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SCQH040N120 1200V N-Channel SiC Power MOSFET by Sunnychip - Datasheet Preview — Official preview page of the **SCQH040N120** 1200V N-Channel SiC Power MOSFET datasheet (Sunnychip).

Datasheet Details

Part number	SCQH040N120
Manufacturer	Sunnychip
File Size	2.21 MB
Description	1200V N-Channel SiC Power MOSFET
Datasheet	SCQH040N120-Sunnychip.pdf

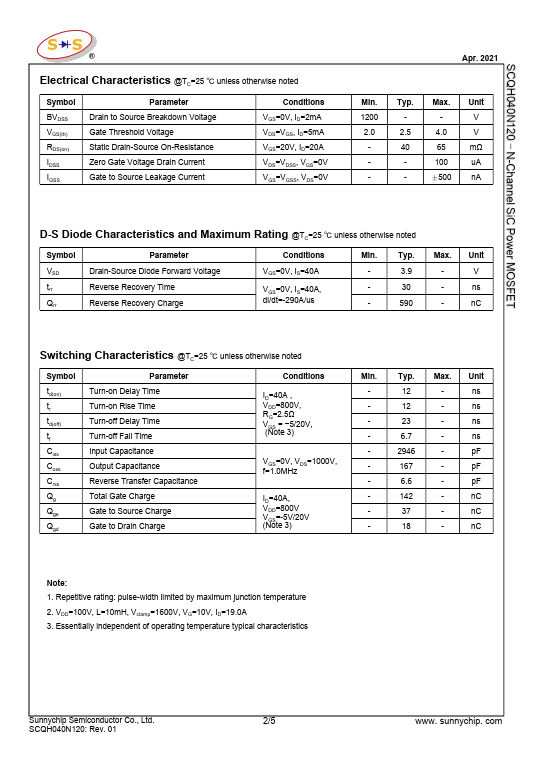

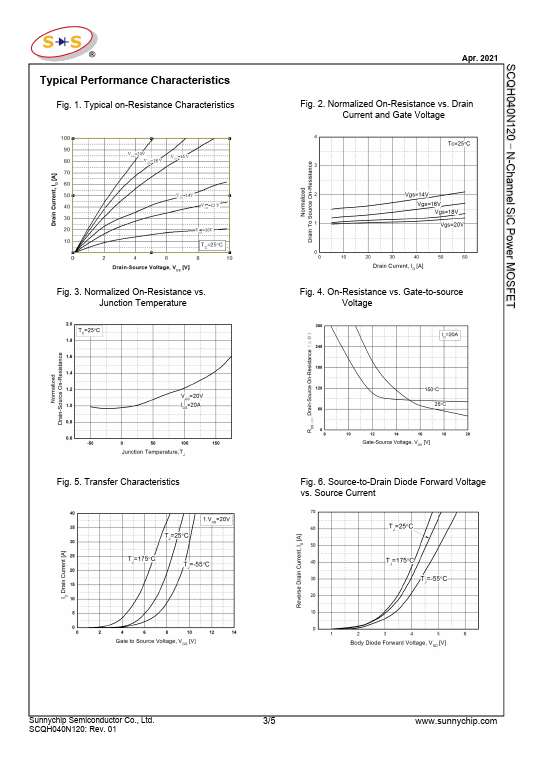

Additional preview pages of the SCQH040N120 datasheet.

SCQH040N120 Product details

Description

The SCQH040N120 is a high blocking voltage N-Channel SiC power MOSFET. Solar Inverters High Voltage DC/DC Converters Motor Drivers Switch Mode Power Supplies Package Type & Internal Circuit G D S Absolute Maximum Ratings @TC=25 ℃ unless otherwise noted Symbol Parameter VDSS VGSS VGSop ID IDM PD Drain to Source Voltage Gate to Source Voltage Re

Features

Typical on-Resistance: RDS (on)=40mΩ(typ. ).
High Blocking Voltage.
100% Avalanche Test.
Good Stability and Uniformity with High EAS.
