W06 - SILICON BRIDGE RECTIFIERS

Product Overview

Sunmate

Part number	W06
Manufacturer	Sunmate
File Size	406.44 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	W06 Datasheet

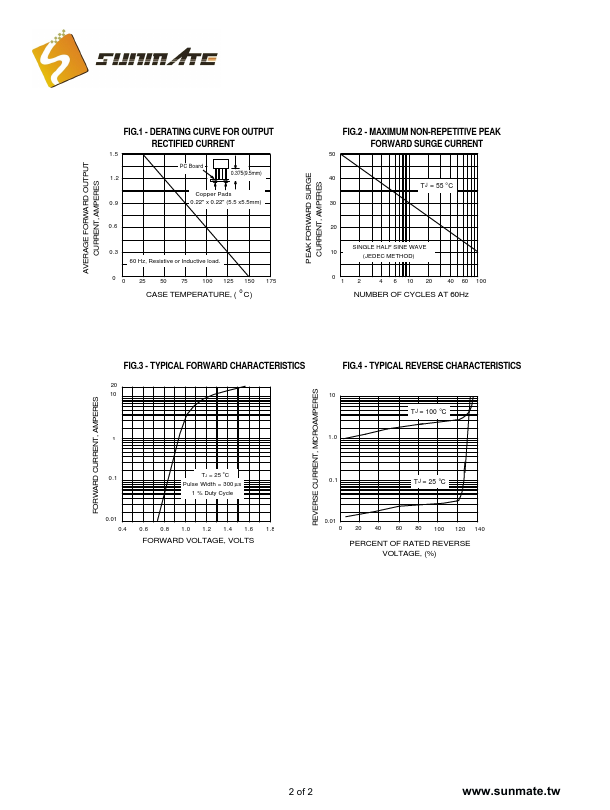

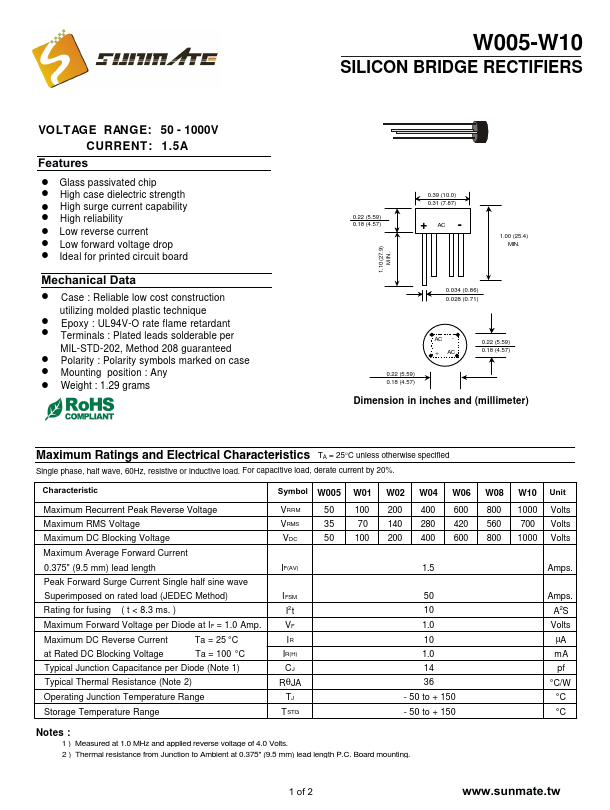

Additional preview pages of the W06 datasheet.

! Glass passivated chip ! High case dielectric strength ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Ideal for printed circuit board Mechanical Data ! Case : Reliable low cost construction utilizing molded plastic technique ! Epoxy : UL94V-O rate flame retardant ! Terminals : Plated leads solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Polarity symbols marked on case ! Mounting position : Any ! Weight : 1.29 grams 0.22 (5.5.
