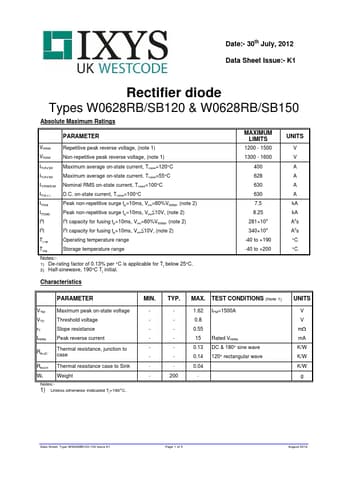

Date:- 30th July, 2012 Data Sheet Issue:- K1
Rectifier diode
Types W0628RB/SB120 & W0628RB/SB150
Absolute Maximum Ratings
PARAMETER
VRRM Repetitive peak reverse voltage, (note 1)
VRSM Non-repetitive peak reverse voltage, (note 1)
IT(AV)M Maximum average on-state current, Tcase=120°C
IT(AV)M Maximum average on-state current. Tcase=55°C
IT(RMS)M Nominal RMS on-state current, Tcase=100°C
IT(d.c.)
D.C. on-state current, Tcase=100°C
ITSM Peak non-repetitive surge tp=10ms, Vrm=60%VRRM, (note 2)
ITSM2 I2t I2t
Tj op
Peak non-repetitive surge tp=10ms, Vrm≤10V, (note 2) I2t capacity for fusing tp=10ms, Vrm=60%VRRM, (note 2) I2t capacity for fusing tp=10ms, Vrm≤10V, (note 2)
Operating temperature range
Tstg Storage temperature range
Notes:1) De-rating factor of 0.
