SMLJ60S6, SMLJ60S1 - SURFACE MOUNT RECTIFIER DIODES

Name: SMLJ60S6
SKU: SMLJ60S6-1591344

Sunmate

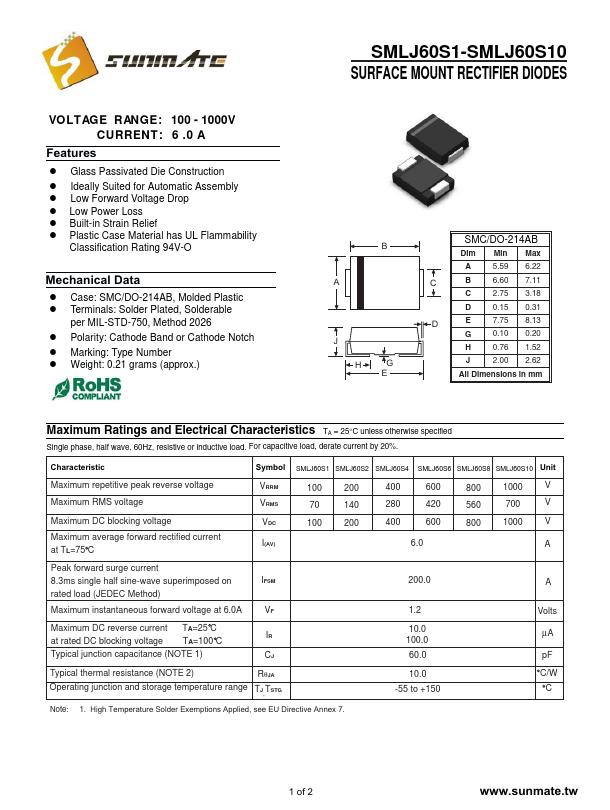

The SMLJ60S6 by Sunmate is a SURFACE MOUNT RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	SMLJ60S6, SMLJ60S1
Manufacturer	Sunmate
File Size	138.25 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	SMLJ60S1-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SMLJ60S6, SMLJ60S1. Please refer to the document for exact specifications by model.

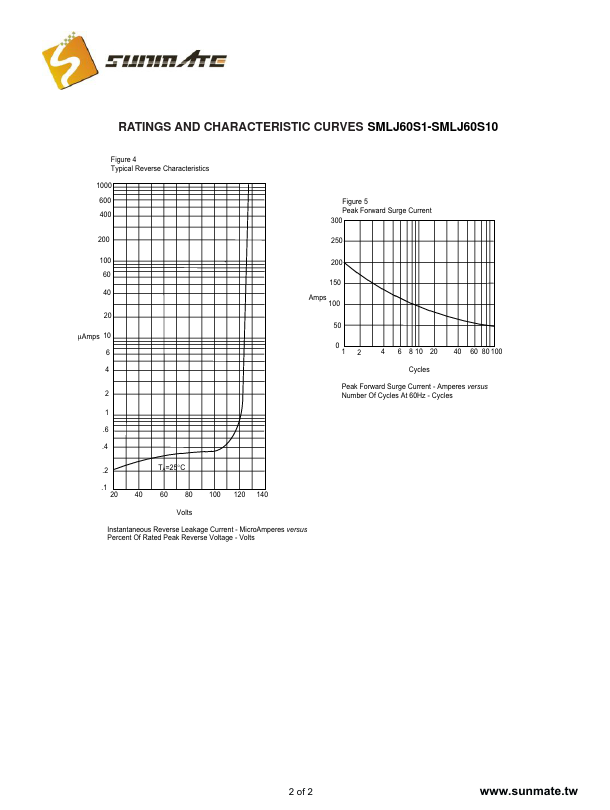

Additional preview pages of the SMLJ60S6 datasheet.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability Classification Rating 94V-O SMC/DO-214AB B Dim Min Max A 5.59 6.22 Mechanical Data A C B 6.60 7.11 ! Case: SMC/DO-214AB, Molded.
