SMLJ60S8, SMLJ60S10 - 6 Amp Glass Passivated Rectifier

Name: SMLJ60S8
SKU: SMLJ60S8-789562

MCC

The SMLJ60S8 by MCC is a 6 Amp Glass Passivated Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	SMLJ60S8, SMLJ60S10
Manufacturer	MCC
File Size	601.47 KB
Description	6 Amp Glass Passivated Rectifier
Datasheet	SMLJ60S10-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: SMLJ60S8, SMLJ60S10. Please refer to the document for exact specifications by model.

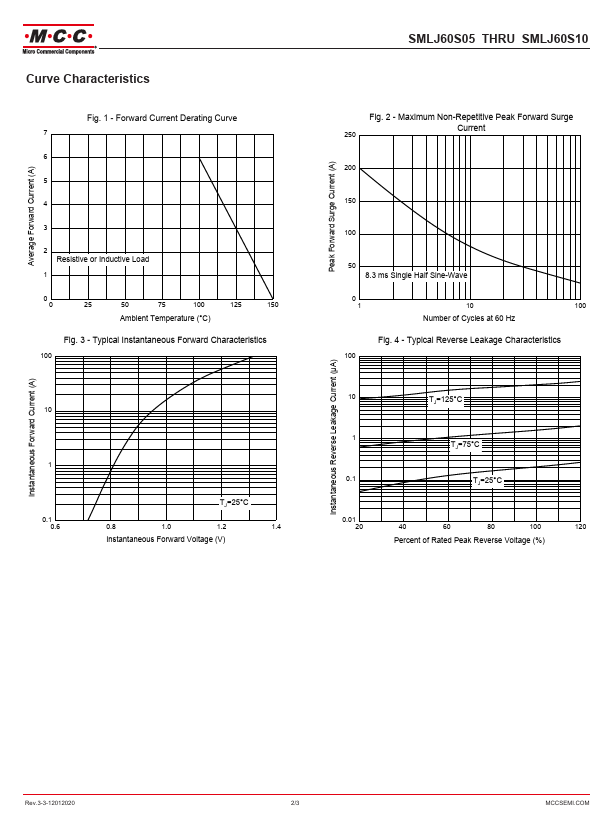

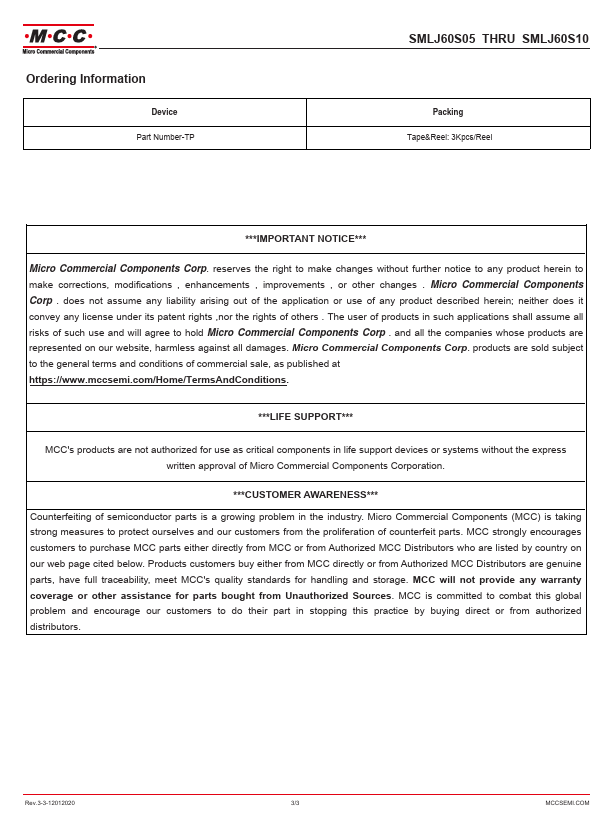

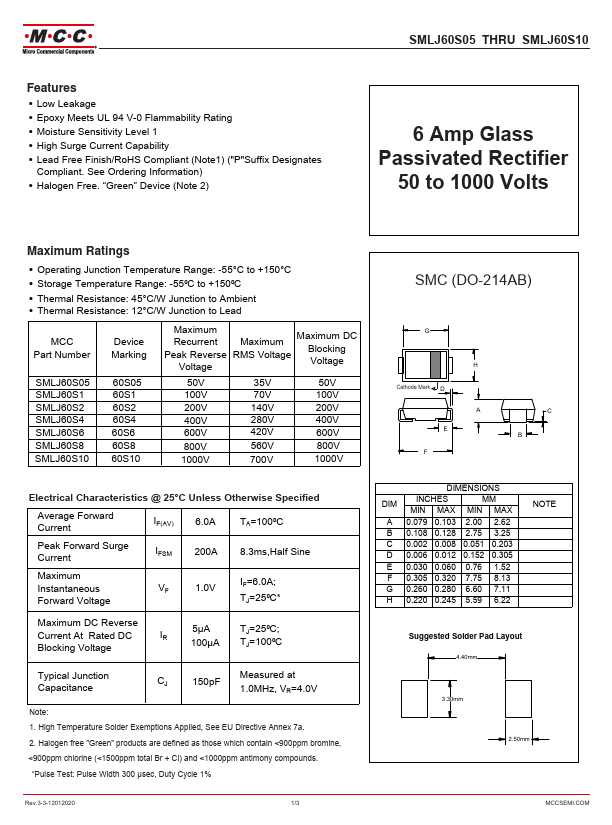

Additional preview pages of the SMLJ60S8 datasheet.

Low Leakage.
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
High Surge Current Capability.
Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix Designates Compliant. See Ordering Information).
Halogen Free. “Green” Device (Note 2) SMLJ60S05 THRU SMLJ60S10 6 Amp Glass Passivated Rectifier 50 to 1000 Volts Maximum Ratings.
Operating Junction Temperature Range: -55°C to +150°C.
Storage Temperature Ra.
