RS807, RS801 - SILICON BRIDGE RECTIFIERS

Name: RS807
SKU: RS807-1590279

Sunmate

The RS807 by Sunmate is a SILICON BRIDGE RECTIFIERS. Below is the official datasheet preview.

Datasheet Details

Part number	RS807, RS801
Manufacturer	Sunmate
File Size	373.13 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	RS801-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RS807, RS801. Please refer to the document for exact specifications by model.

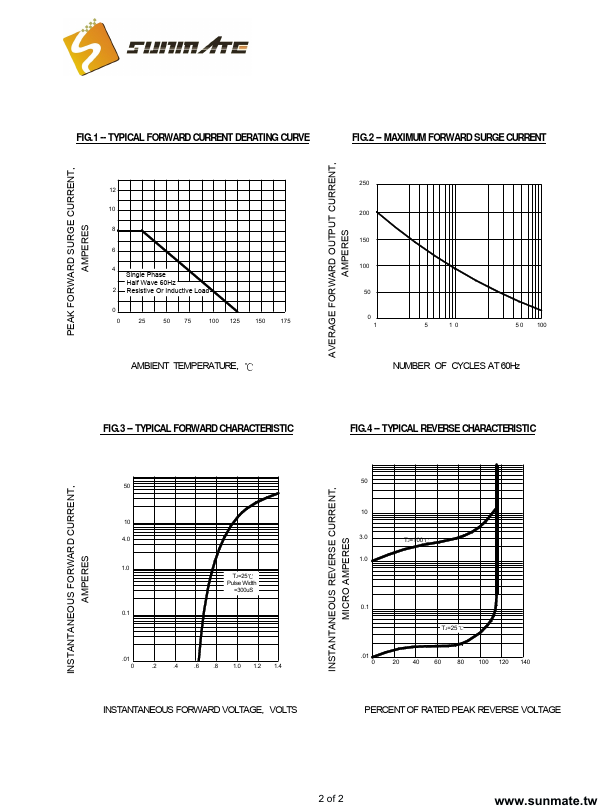

Additional preview pages of the RS807 datasheet.

! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.375 ”(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0 Mechanical Data ! Case: Molded plastic body ! Terminals: Plated leads solderable per MIL-STD-750, Method 2026 ! Polarity: Polarity symbols marked on case ! Weight:0.3 ounce, 8.0 grams KBU .935(23.7) .89.
