RS405, RS401 SILICON BRIDGE RECTIFIERS

Sunmate

Description

RS401-RS407 SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 4.0 A .

📥 Download Datasheet

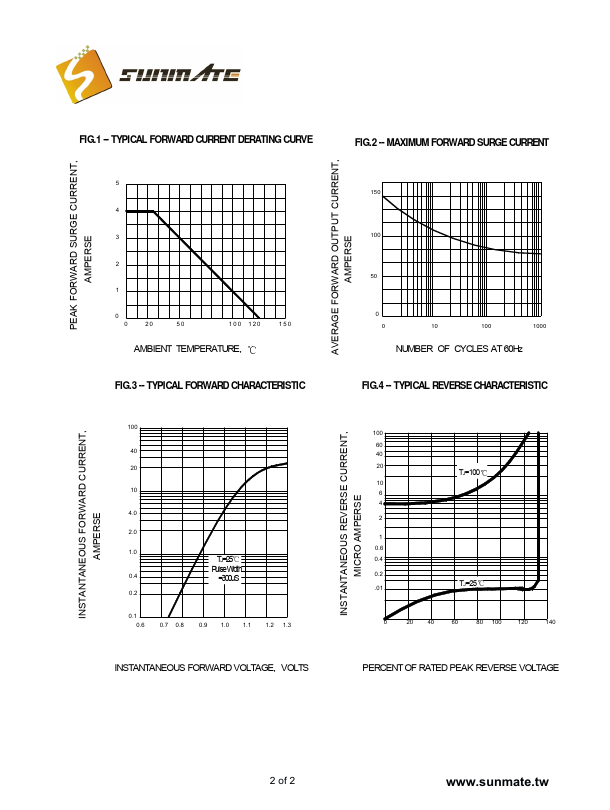

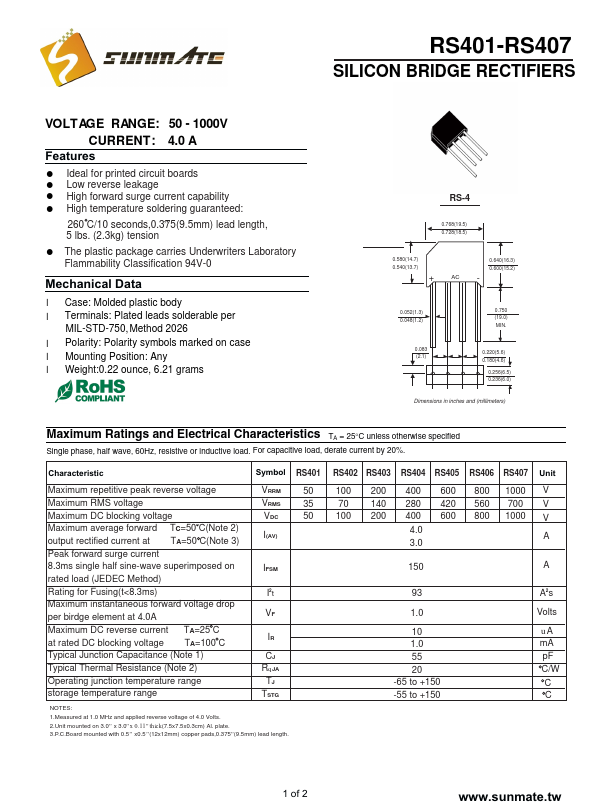

RS405 Datasheet Preview — This datasheet PDF includes multiple part numbers: RS405, RS401. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: RS405, RS401
Manufacturer: Sunmate
File Size: 353.85 KB
Datasheet: RS401-Sunmate.pdf
Description: SILICON BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: RS405, RS401.
Please refer to the document for exact specifications by model.

Features

* ! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.3”75(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Mechani
