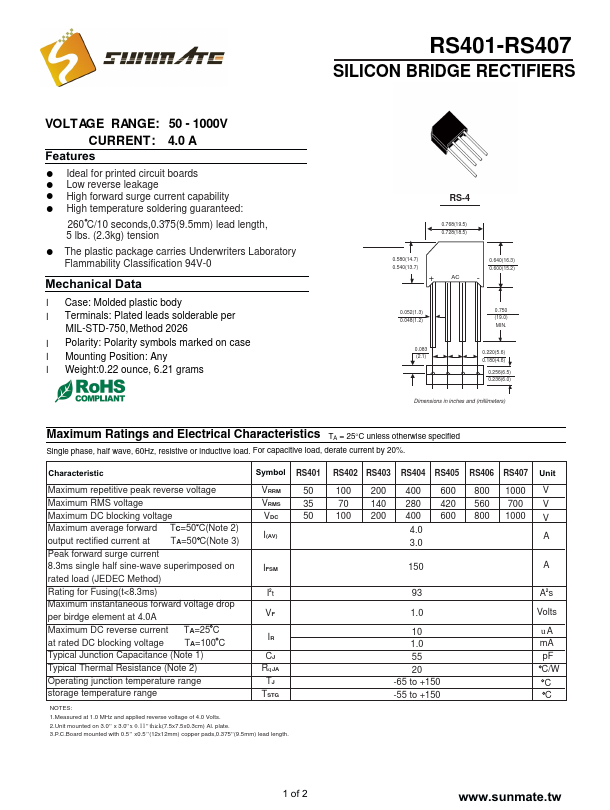

RS403, RS401 - SILICON BRIDGE RECTIFIERS

Sunmate

Datasheet Details

Part number: RS403, RS401
Manufacturer: Sunmate
File Size: 353.85 KB
Datasheet: RS401-Sunmate.pdf
Description: SILICON BRIDGE RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: RS403, RS401.
Please refer to the document for exact specifications by model.

! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.3”75(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Mechanical Data l Case: Molded plastic body l Terminals: Plated leads solderable per MIL-STD-750, Method 2026 l Polarity: Polarity symbols marked on case l Mounting Position: Any l Weight:0.22 ounce, 6.21 gr.
