RGF3MB, RGF3AB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Name: RGF3MB
SKU: RGF3MB-1592268

Sunmate

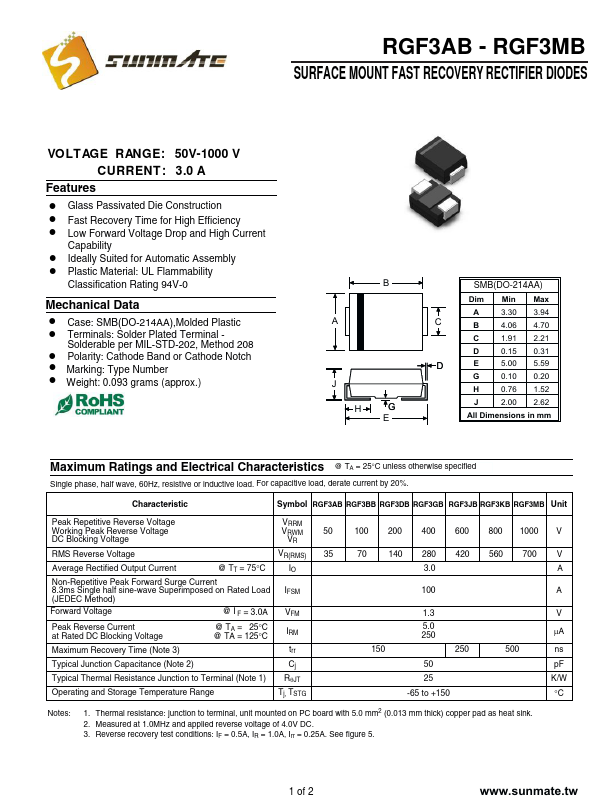

The RGF3MB by Sunmate is a SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	RGF3MB, RGF3AB
Manufacturer	Sunmate
File Size	94.11 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	RGF3AB-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: RGF3MB, RGF3AB. Please refer to the document for exact specifications by model.

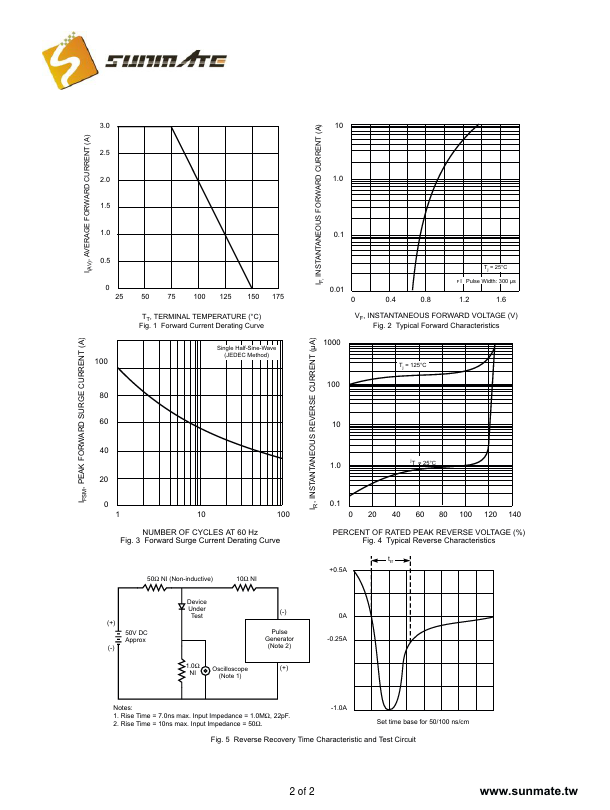

Additional preview pages of the RGF3MB datasheet.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB(DO-214AA),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx. ) B A J H G E SMB(DO-214AA) Dim.
