RGF3AB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Name: RGF3AB
SKU: RGF3AB-1592262

Sunmate

The RGF3AB by Sunmate is a SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	RGF3AB
Manufacturer	Sunmate
File Size	94.11 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	RGF3AB-Sunmate.pdf

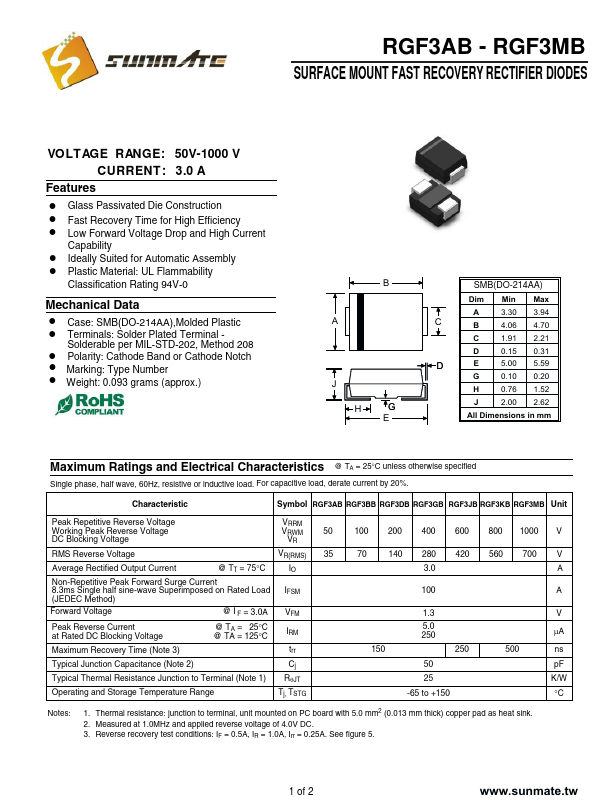

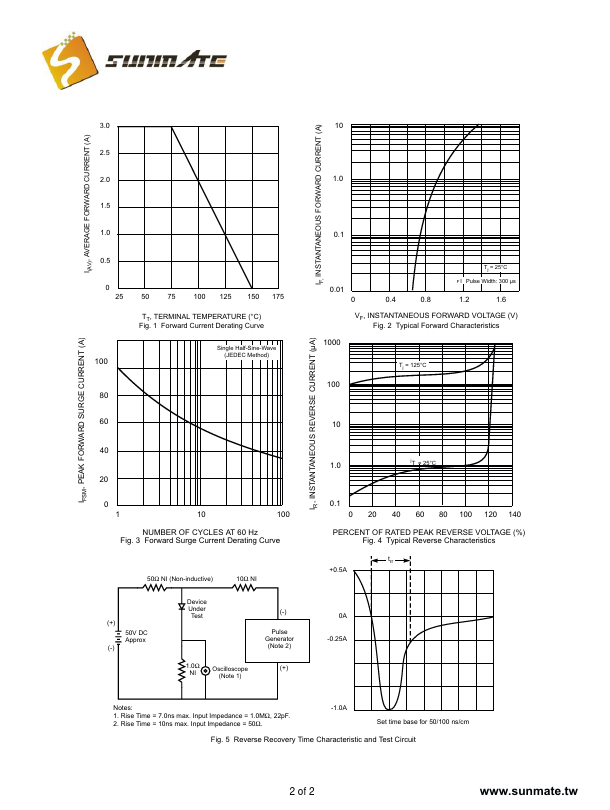

Additional preview pages of the RGF3AB datasheet.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMB(DO-214AA),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.093 grams (approx. ) B A J H G E SMB(DO-214AA) Dim.
