RB150 - SINGLE-PHASE BRIDGE RECTIFIER

Sunmate

📥 Download Datasheet

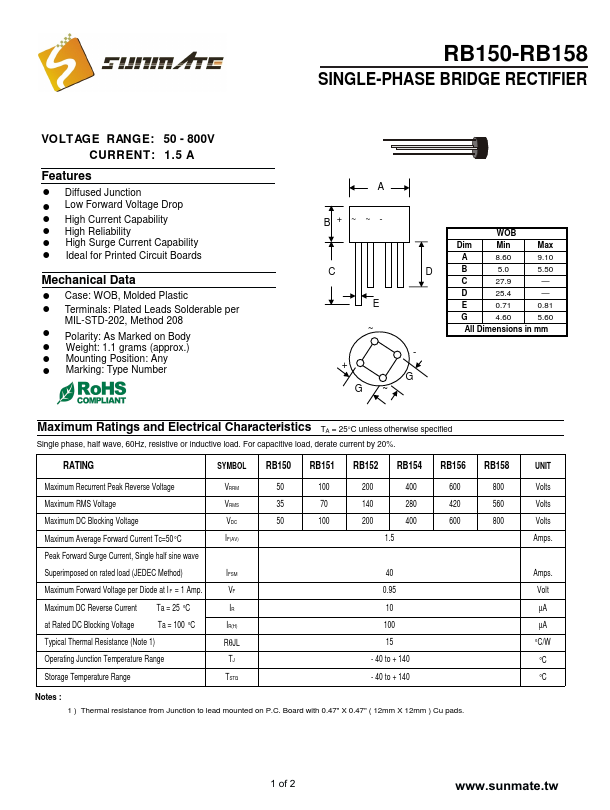

RB150 Datasheet Preview — Preview of RB150 PDF

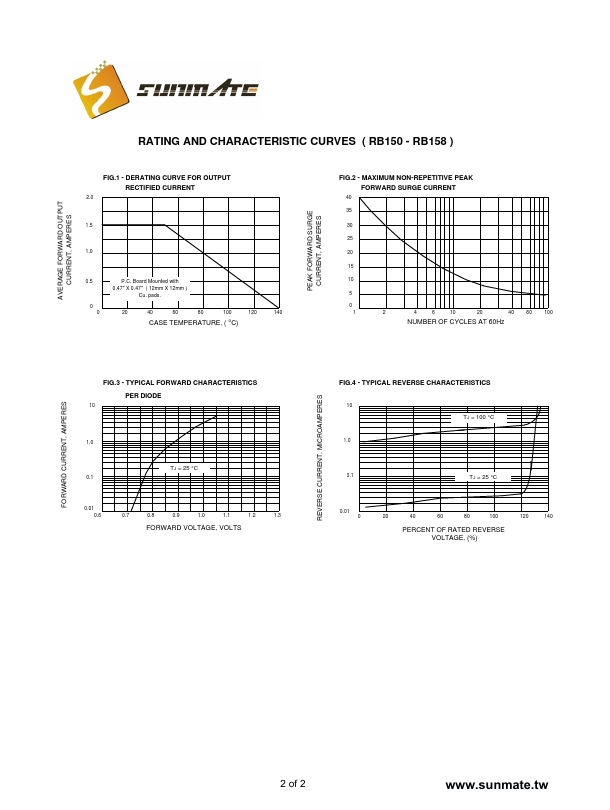

datasheet Preview Page 2

Datasheet Details

Part number	RB150
Manufacturer	Sunmate
File Size	227.45 KB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	RB150-Sunmate.pdf

RB150 Product details

Features

! Diffused Junction A ! Low Forward Voltage Drop ! High Current Capability ! High Reliability B+ ~ ~ - ! H igh Surge C urre nt Ca p a bility ! Ideal for Printed Circuit Boards Mechanical Data C D ! Case: WOB, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: As Marked on Body ! Weight: 1.1 grams (approx. ) ! Mounting Position: Any ! Mar.
