RB151 SINGLE PHASE BRIDGE RECTIFIER

RB151 Description

RB151 - RB157 SINGLE PHASE BRIDGE RECTIFIER VOLTAGE RANGE - 50 to 1000 V CURRENT - 1.5 A .

RB151 Features

* ▪ Low cost construction ▪ High forward surge current capability ▪ Ideal for printed circuit board ▪ High isolation voltage from case to leads ▪ High temperature soldering guaranteed: 260 oC/10 second, at 5 lbs. (2.3kg) tension. MECHANICAL DATA ▪ Case: Molded plastic body ▪ Terminal: Lead solderable

📥 Download Datasheet

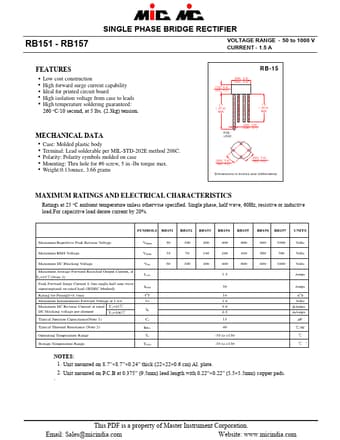

Preview of RB151 PDF
datasheet Preview Page 2

Datasheet Details

Part number
RB151
Manufacturer
MIC
File Size
284.20 KB
Datasheet
RB151-MIC.pdf
Description
SINGLE PHASE BRIDGE RECTIFIER
