PR3001 - FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	PR3001
Manufacturer	Sunmate
File Size	94.36 KB
Description	FAST RECOVERY RECTIFIER DIODES
Datasheet	PR3001-Sunmate.pdf

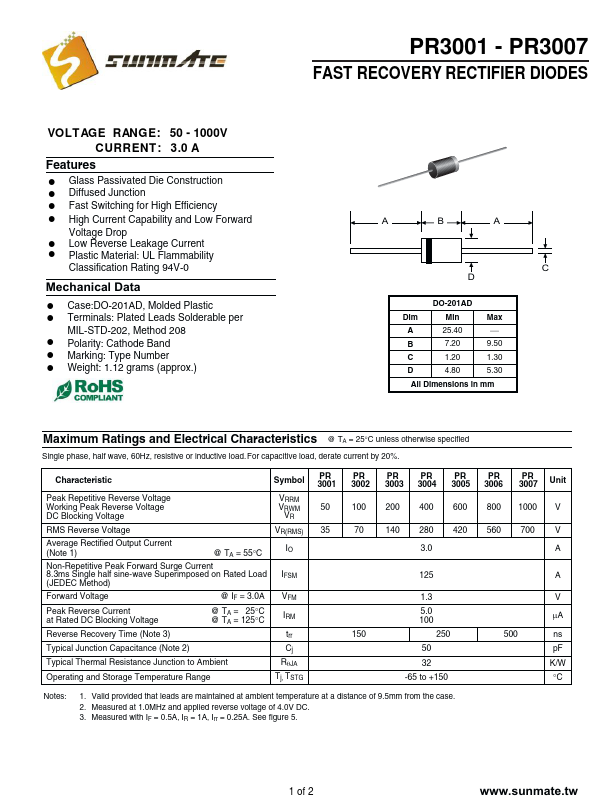

! Glass Passivated Die Construction ! Diffused Junction ! Fast Switching for High Efficiency ! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case:DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Marking: Type Number ! Weight: 1.12 grams (approx. ) A B A C D DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50.
