PR3001G - 3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER

DIODES

📥 Download Datasheet

PR3001G Datasheet Preview — Preview of PR3001G PDF

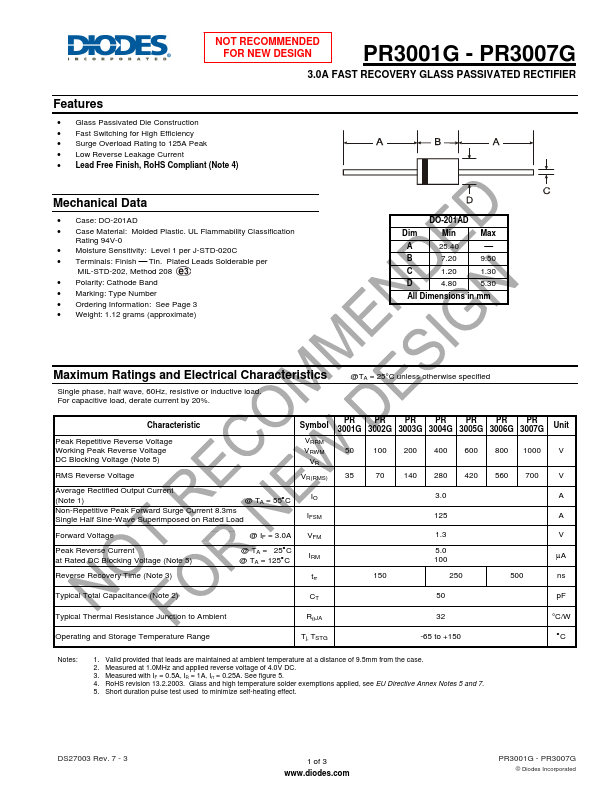

datasheet Preview Page 2

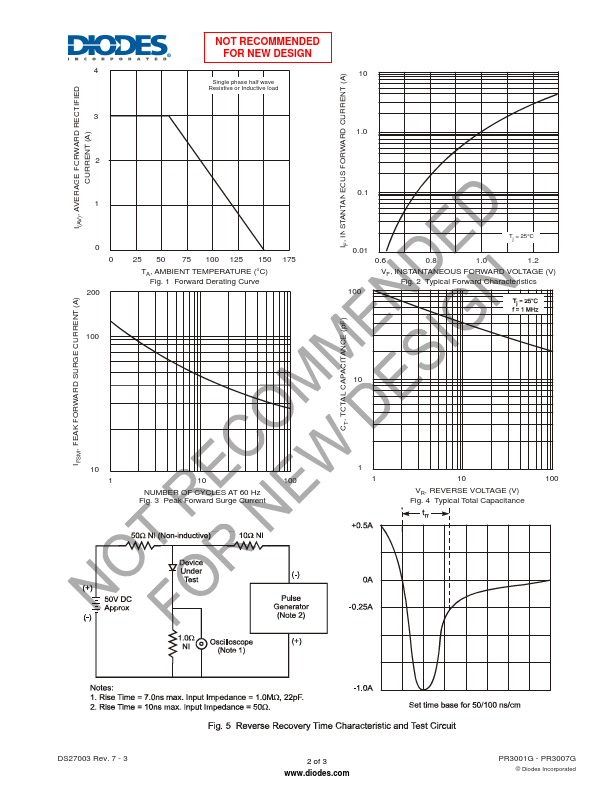

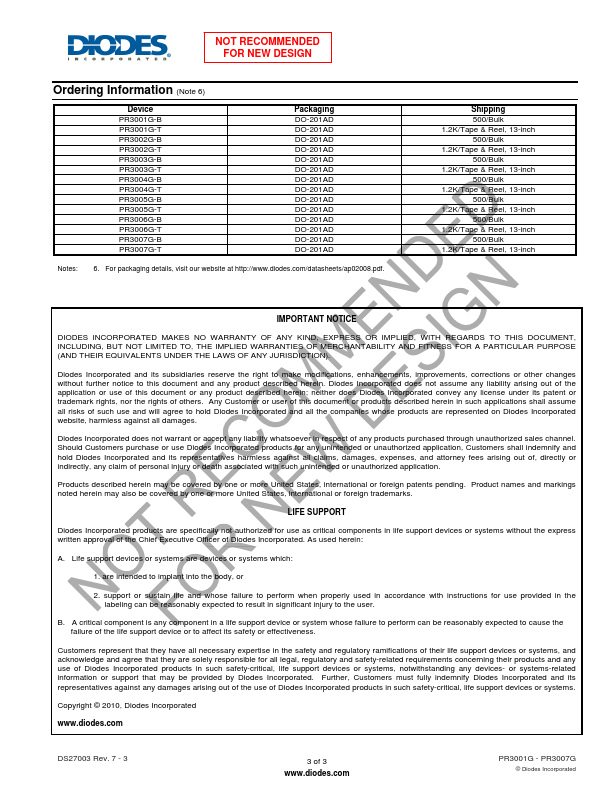

datasheet Preview Page 3

Datasheet Details

Part number	PR3001G
Manufacturer	DIODES ↗
File Size	97.24 KB
Description	3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER
Datasheet	PR3001G-DIODES.pdf

PR3001G Product details

Features

Glass Passivated Die Construction.
Fast Switching for High Efficiency.
Surge Overload Rating to 125A Peak.
Low Reverse Leakage Current.
Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data.
Case: DO-201AD.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish ⎯ Tin. Plated Leads Solderable per MIL-STD-202, Method 208.
